Features:

`RDS ON = 2
`INTERNAL CLAMPING VOLTAGE = 32V
`INTERNAL FREE WHEELING DIODES
`PARALLEL DRIVE CAPABILITY
`RESISTIVEOR INDUCTIVE LOAD


Pinout

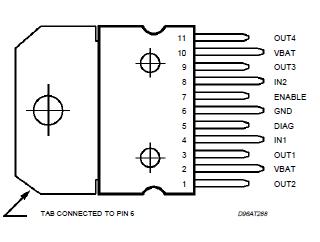

Connection Diagram


Specifications

Symbol Parameter Value Unit
E Clamped Energy at the Switching off 6 (max) mJ
Vout DC Continuous Output Voltage 24 (max) V
Vout tr Transient Output Voltage 32 (max) V
Vbat DC Continuous Battery Voltage 8 to 24 V
Vbat tr Transient Battery Voltage 45 (max) V
Iout Reverse Output Current 2 (max) A
fin Input Frequency 500 (max) Hz
Vin Input Voltage 0.3 to +7 V
Vdiag Diagnostic Voltage 0.3 to +7 V
Ts Storage Temperature 55 to 150 °C
Tj Operating Junction Temperature 40 to 150 °C
VESD VESD (Note MIL STD 883C) 3000 V



Description

The L9930 is a dual full-bridge. The output stages are Power Mos switches.
