L9349

Features: ` Quad power low side driver with 2 x 5A and` x 3A output current capability` Low RDSON typically 200m and 300m @ Tj = 25°C` Internal output clamping structures with VFB = 50V for fast inductive load current recirculation` Limited output voltage slew rate for low EMI` Protected mP compat...

product image

L9349 Picture
See larger image
SeekIC No. : 004389646 Detail

L9349: Features: ` Quad power low side driver with 2 x 5A and` x 3A output current capability` Low RDSON typically 200m and 300m @ Tj = 25°C` Internal output clamping structures with VFB = 50V for fast ind...

L9349 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
L9349
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/10/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Quad power low side driver with 2 x 5A and
` x 3A output current capability
` Low RDSON typically 200m and 300m @ Tj = 25°C
` Internal output clamping structures with VFB = 50V for fast inductive load current recirculation
` Limited output voltage slew rate for low EMI
` Protected mP compatible enable and input
` Wide operating supply voltage range 4.5V to 32V
` Real time diagnostic functions:
   Output shorted to GND
   Output shorted to VSS
   Open load detection in ON and OFF condition
   Load bypass detection
   Overtemperature detection
` Device protection functions:
   Overload disable
   Selective thermal shutdown
` Signal- and Power-Ground-loss shutdown


Pinout

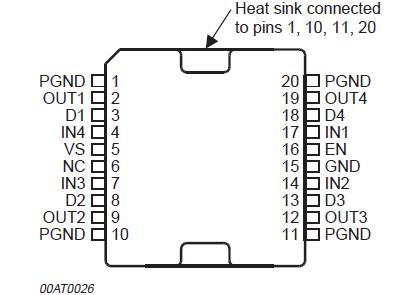

Connection Diagram


Specifications

Symbol Parameter Conditions Value Unit
VS DC Supply Voltage   -2 to 32 V
VSP Supply Voltage Pulse (duration <200ms)   -2 to 45 V
|dVs/dt| Supply Voltage Slope   10 V/s
VIN, EN Input Voltage | I | 10mA -2 to 16 V
VD Diagnostic DC Output Voltage | I | 50mA -0.3 to 16 V
VODC DC Output Voltage   -0.3 to 45 V
IO1, 2 DC Output Current Out 1, 2   5 A
IO3, 4 DC Output Current Out 3, 4   3 A
IOR1, 2 Reverse Output Current   -5 A
IOR3, 4 Reverse Output Current   -3 A
EO1, 2 Switch-off Energy for Inductive Loads tEO = 250s,1) 50 mJ
EO3, 4 T = 5ms 30 mJ
VGND GND Potential Difference Tj = -40 to 150°C ±0.3 V
TjEO Juntion Temperature During Switch-off   175 °C
t 30 min 190 °C
Tj Juntion Temperature t 15 min -40 to TjDIS °C
Tstg Storage Temperature   -55 to 150 °C
TjDIS Thermal Disable Junction Temp. Threshold   180 to 210 °C
ESD Electrostatical Discharging MIL883C + -2 kV
ESD OUT1 - 4 vs. Common-GND
(PGNDs + GND)		 + -4 kV

1) tEO is the clamping time (see Figure 1)


Description

The L9349 is a monolithic integrated quad low side driver realized in an advanced MultipowerBCD mixed technology. The  L9349 is intended to drive valves in automotive environment.

The inputs are P compatible. Particular care has been taken to protect the L9349 against failures, to avoid electromagnetic interferences and to offer extensive real time diagnostic.
