L9341V

Features: ·DU/DT AND DI/DT CONTROL·PWM CONTROLLED OUTPUT CURRENT·SHORT CURRENT PROTECTION AND DIAGNOSTIC·INTEGRATED FLYBACK DIODE·UNDERVOLTAGESHUTDOWN·OVERVOLTAGE AND UNDERVOLTAGE DIAGNOSTIC·OVERTEMPERATURE DIAGNOSTICPinoutSpecifications Symbol Parameter Value Unit VCC VCC Voltage Rang...

product image

L9341V Picture
See larger image
SeekIC No. : 004389643 Detail

L9341V: Features: ·DU/DT AND DI/DT CONTROL·PWM CONTROLLED OUTPUT CURRENT·SHORT CURRENT PROTECTION AND DIAGNOSTIC·INTEGRATED FLYBACK DIODE·UNDERVOLTAGESHUTDOWN·OVERVOLTAGE AND UNDERVOLTAGE DIAGNOSTIC·OVERTEM...

L9341V Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
L9341V
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/10

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·DU/DT AND DI/DT CONTROL
·PWM CONTROLLED OUTPUT CURRENT
·SHORT CURRENT PROTECTION AND DIAGNOSTIC
·INTEGRATED FLYBACK DIODE
·UNDERVOLTAGESHUTDOWN
·OVERVOLTAGE AND UNDERVOLTAGE DIAGNOSTIC
·OVERTEMPERATURE DIAGNOSTIC


Pinout

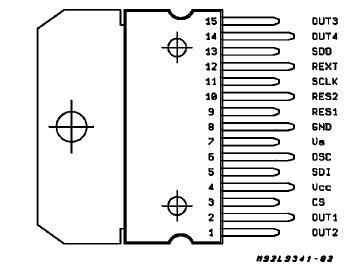

Connection Diagram


Specifications

Symbol Parameter Value Unit
VCC VCC Voltage Range -0.3 to 6 V
VS VS Voltage Range -0.3 to 24 V
Vspmax VS Voltage Range for t 400ms -2 to 40 V
Vst Schaffner Transient Pulses on VS see note 1 V
Vin Input Voltage Range for SDI; SCLK;CS;RES1;RES2 -0.3to VCC+0.3
Vout Output Voltage Range for all Outputs:
Negative
Positive		 0.3
intern. clamped to VS		 V
V
Iout Output Current for all Outputs:
Negative
Positive		 2
+ 2		 A
A
  for Transient with t < 10ms
Negative
Positive		 5
5		 A
A
  Schaffner Transient Pulses on Output see note 2
VESD ESD Voltage Capability (MIL 883 C) 1500 V



Description

The L9341V is a monolithic integrated circuit realized in Multipower BCD-II mixed technology. The L9341V is intended for inductive loads in synchronous PWM applications, especially for valve drivers The output voltage and current rise and fall slopes du/dt and di/dt are controlled.
