L9339MD

Rise Time :
Fall Time :
Supply Voltage - Max :
Product :
Supply Current :
Maximum Power Dissipation :
Mounting Style : SMD/SMT
Maximum Operating Temperature : + 125 C
Supply Voltage - Min : 4.5 V
Packaging : Tube
Type : Quad Low Side Driver
Package / Case : SO-20


Features:

` WIDE OPERATING SUPPLY VOLTAGE RANGE FROM 4.5V UP TO 32V FOR TRANSIENT 45V
` VERY LOW STANDBY QUIESCENT CURRENT < 2A
` INPUT TO OUTPUT SIGNAL TRANSFER FUNCTION PROGRAMMABLE
` HIGH SIGNAL RANGE FROM -0.3V UP TO 32V FOR ALL INPUTS
` TTL AND CMOS COMPATIBLE INPUTS
` DEFINED OUTPUT OFF STATE FOR OPEN INPUTS
` FOUR OPEN DRAIN DMOS OUTPUTS, WITH R<sub>DSon</sub> = 1.5 FOR VS > 6V AT 25°C
` OUTPUT CURRENT LIMITATION
` CONTROLLED OUTPUT SLOPE FOR LOW EMI
` OVERTEMPERATURE PROTECTION FOR EACH CHANNEL
` INTEGRATED OUTPUT CLAMPING FOR FAST INDUCTIVE RECIRCULATION V<sub>FB</sub> > 45V
` STATUS MONITORING FOR
    - OVERTEMPERATURE
    - DISCONNECTED GROUND OR SUPPLY VOLTAGE

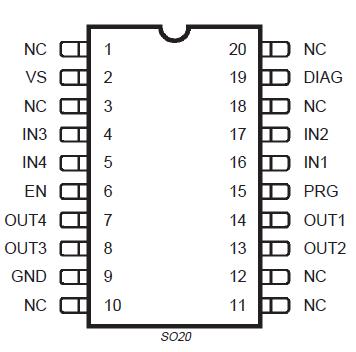

Pinout




Specifications

Symbol	Parameter	Value	Unit
VS	Supply voltage DC Supply voltage Pulse (T 400ms)	-0.3 ... 32 -0.3 ... 45	V V
dVS/dt	Supply voltage transient	-10 ... +10	V/s
VIN, VPRG	Input, Programming DC voltage Input, Programming Pulse (T 400ms)	-0.3 ... 32 -0.3 ... 45	V V
IIN	Negative input current	-10	mA
VEN	Enable voltage DC Enable voltage Pulse (T 400ms)	-24 ... 32 -24 ... 45	V V
VOUT	Output voltage	-0.3 ... 45 1)	A
IOUT	Negative output current Positive output current	-1 internal limited	V
VDIAG	Diagnostic output voltage DC Diagnostic output voltage Pulse (T 400ms)	-0.3 ... 32 -0.3 ... 45	V V

Notes: 1. In flyback phase the output voltage can reach 60V.
           ESD according to MIL 883C; tested at 2KV; corresponds to maximum energy dissipation 0.2mJ.


Description

The L9339MD is a monolithic integrated quad low side driver. L9339MD is intended to drive lines, lamps or relais in automotive or industrial applications.

Parameters:

Technical/Catalog Information	L9339MD
Vendor	STMicroelectronics
Category	Integrated Circuits (ICs)
Package / Case	20-SOIC (7.5mm Width)
Mounting Type	Surface Mount
Type	Low Side
Voltage - Supply	4.5 V ~ 32 V
On-State Resistance	1.7 Ohm
Current - Output / Channel	-
Current - Peak Output	1A
Packaging	Tube
Input Type	Inverting
Number of Outputs	4
Operating Temperature	-40°C ~ 125°C
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	L9339MD L9339MD
