L9333

Features: ` WIDE OPERATING SUPPLY VOLTAGE RANGE FROM 4.5V UP TO 32V FOR TRANSIENT 45V` VERY LOW STANDBY QUIESCENT CURRENT TYPICALLY < 2A` INPUT TO OUTPUT SIGNAL TRANSFER FUNCTION PROGRAMMABLE` HIGH SIGNALRANGE FROM -14V UP TO 45V FOR ALL INPUTS` 3.3V CMOS COMPATIBLE INPUTS` DEFINED OUTPUT OFF S...

product image

L9333 Picture
See larger image
SeekIC No. : 004389641 Detail

L9333: Features: ` WIDE OPERATING SUPPLY VOLTAGE RANGE FROM 4.5V UP TO 32V FOR TRANSIENT 45V` VERY LOW STANDBY QUIESCENT CURRENT TYPICALLY < 2A` INPUT TO OUTPUT SIGNAL TRANSFER FUNCTION PROGRAMMABLE` HI...

L9333 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
L9333
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` WIDE OPERATING SUPPLY VOLTAGE RANGE FROM 4.5V UP TO 32V FOR TRANSIENT 45V
` VERY LOW STANDBY QUIESCENT CURRENT TYPICALLY < 2A
` INPUT TO OUTPUT SIGNAL TRANSFER FUNCTION PROGRAMMABLE
` HIGH SIGNALRANGE FROM -14V UP TO 45V FOR ALL INPUTS
` 3.3V CMOS COMPATIBLE INPUTS
` DEFINED OUTPUT OFF STATE FOR OPEN INPUTS
` FOUR OPEN DRAIN DMOS OUTPUTS, WITH RDSon = 1.5 FOR VS > 6V AT 25°C
` OUTPUT CURRENT LIMITATION
` CONTROLLED OUTPUT SLOPE FOR LOW EMI
` OVERTEMPERATURE PROTECTION FOR EACH CHANNEL
` INTEGRATED OUTPUT CLAMPING FOR FAST INDUCTIVE RECIRCULATION VFB > 45V
` STATUS MONITORING FOR
   - OVERTEMPERATURE
   - DISCONNECTED GROUND OR SUPPLY VOLTAGE




Pinout

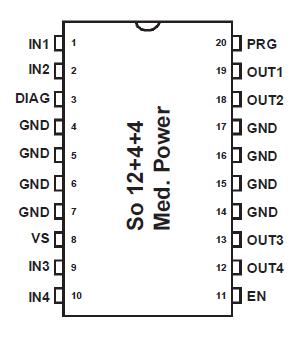

Connection Diagram




Specifications

Symbol Parameter Value Unit
VS Supply voltage DC
Supply voltage Pulse (T = 400ms)		 -0.3 to 32
-0.3 to 45		 VV
dVS/dt Supply voltage transient -10 to +10 V/s
VIN, VEN,
VPRG		 Input, Enable, Programming
Pin voltage		 -14 to 45 V
VOUT Output voltage -0.3 to 45 1) V
VDIAG Diagnostic output voltage -0.3 to 45 V

Notes: 1. In flyback phase the output voltage can reach 60V.


Description

The L9333 is a monolithic integrated quad low side driver. L9333 is intended to drive lines, lamps or relais in automotive or industrial applications.
