L6919C

Features: · 2 PHASE OPERATION WITH SYNCRHONOUS RECTIFIER CONTROL· ULTRA FAST LOAD TRANSIENT RESPONSE· INTEGRATED HIGH CURRENT GATE DRIVERS: UP TO 2A GATE CURRENT· TTL-COMPATIBLE 5 BIT PROGRAMMABLE OUTPUT FROM 0.800V TO 1.550V WITH 25mV STEPS· DYNAMIC VID MANAGEMENT· 0.6% OUTPUT VOLTAGE ACCURACY· 1...

product image

L6919C Picture
See larger image
SeekIC No. : 004389319 Detail

L6919C: Features: · 2 PHASE OPERATION WITH SYNCRHONOUS RECTIFIER CONTROL· ULTRA FAST LOAD TRANSIENT RESPONSE· INTEGRATED HIGH CURRENT GATE DRIVERS: UP TO 2A GATE CURRENT· TTL-COMPATIBLE 5 BIT PROGRAMMABLE O...

L6919C Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
L6919C
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/10/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· 2 PHASE OPERATION WITH SYNCRHONOUS RECTIFIER CONTROL
· ULTRA FAST LOAD TRANSIENT RESPONSE
· INTEGRATED HIGH CURRENT GATE DRIVERS: UP TO 2A GATE CURRENT
· TTL-COMPATIBLE 5 BIT PROGRAMMABLE OUTPUT FROM 0.800V TO 1.550V WITH 25mV STEPS
· DYNAMIC VID MANAGEMENT
· 0.6% OUTPUT VOLTAGE ACCURACY
· 10% ACTIVE CURRENT SHARING ACCURACY
· DIGITAL 2048 STEP SOFT-START
· OVERVOLTAGE PROTECTION
· OVERCURRENT PROTECTION REALIZED USING THE LOWER MOSFET'S RdsON OR A SENSE RESISTOR
· OSCILLATOR EXTERNALLY ADJUSTABLE AND INTERNALLY FIXED AT 200kHz
· POWER GOOD OUTPUT AND INHIBIT FUNCTION
· REMOTE SENSE BUFFER
· PACKAGE: SO-28


Application

· POWER SUPPLY FOR SERVERS AND WORKSTATIONS
· POWER SUPPLY FOR HIGH CURRENT MICROPROCESSORS
· DISTRIBUTED POWER SUPPLY


Pinout

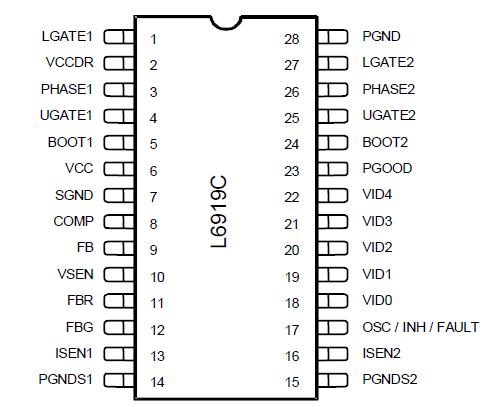

Connection Diagram


Specifications

Symbol Parameter Value Unit
Vcc, VCCDR to PGND 15 V
VBOOT-VPHASE Boot Voltage 15 V
VUGATE1-VPHASE1
VUGATE2-VPHASE2		   15 V
  LGATE1, PHASE1, LGATE2, PHASE2 to PGND -0.3 to Vcc+0.3 V
  VID0 to VID4 -0.3 to 5 V
  All other pins to PGND -0.3 to 7 V
Vphase Sustainable Peak Voltage t < 20ns @ 600kHz 26 V



Description

L6919C is a power supply controller specifically designed to provide a high performance DC/DC conversion for high current microprocessors. L6919C  implements a dual-phase step-down controller with a 180° phase-shift between each phase. A precise 5-bit digital to analog converter (DAC) allows adjusting the output voltage from 0.800V to 1.550V with 25mV binary steps managing On-The-Fly VID code changes.

The high precision internal reference assures the selected output voltage to be within ±0.6%. The high peak current gate drive affords to have fast switching to the external power mos providing low switching losses.

L6919C assures a fast protection against load over current and load over/under voltage. An internal crowbar is provided turning on the low side mosfet if an over-voltage is detected. In case of over-current, the system works in Constant Current mode.
