L6910

Switching Converters, Regulators & Controllers 5.0 to 12V Step-Down

product image

L6910 Picture
See larger image
SeekIC No. : 00586134 Detail

L6910: Switching Converters, Regulators & Controllers 5.0 to 12V Step-Down

L6910 Data Sheet

floor Price/Ceiling Price

US $ .92~1.04 / Piece | Get Latest Price
Part Number:
L6910
Mfg:
STMicroelectronics
Supply Ability:
5000

Price Break

  • Qty
  • 0~730
  • 730~1000
  • 1000~2000
  • Unit Price
  • $1.04
  • $.97
  • $.92
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Output Voltage : 4 V Mounting Style : SMD/SMT
Package / Case : SO-16 Packaging : Tube

Description

Output Current :
Output Power :
Input Voltage :
Switching Frequency :
Operating Temperature Range :
Mounting Style : SMD/SMT
Packaging : Tube
Package / Case : SO-16
Output Voltage : 4 V


Features:

· OPERATING SUPPLY VOLTAGE FROM 5V TO 12V BUSES
· UP TO 1.3A GATE CURRENT CAPABILITY
· ADJUSTABLE OUTPUT VOLTAGE
· N-INVERTING E/A INPUT AVAILABLE
· 0.9V ±1.5% VOLTAGE REFERENCE
· VOLTAGE MODE PWM CONTROL
· VERY FAST LOAD TRANSIENT RESPONSE
· 0% TO 100% DUTY CYCLE
· POWER GOOD OUTPUT
· OVERVOLTAGE PROTECTION
· HICCUP OVERCURRENT PROTECTION
· 200kHz INTERNAL OSCILLATOR
· OSCILLATOR EXTERNALLY ADJUSTABLE FROM 50kHz TO 1MHz
· SOFT START AND INHIBIT
· PACKAGES: SO-16 & HTSSOP16


Application

· SUPPLY FOR MEMORIES AND TERMINATIONS
· COMPUTER ADD-ON CARDS
· LOW VOLTAGE DISTRIBUTED DC-DC
· MAG-AMP REPLACEMENT

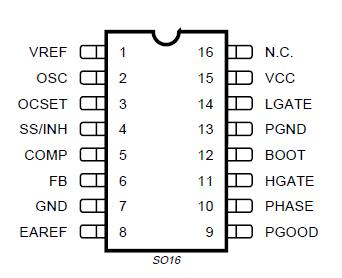

Pinout

Connection Diagram


Specifications

Symbol Parameter Value Unit
VCC VCC to GND, PGND 15 V
VBOOT-VPHASE Boot Voltage 15 V
VHGATE-VPHASE   15 V
  OCSET, LGATE, PHASE -0.3 to Vcc+0.3 V
  SS, FB, PGOOD, VREF, EAREF, RT 7 V
  COMP 6.5 V
Tj Junction Temperature Range -40 to 150 °C
Tstg Storage temperature range -40 to 150 °C
Ptot Maximum power dissipation at Tamb = 25°C 1 W



Description

L6910 is a pwm controller for high performance dc-dc conversion from 3.3V, 5V and 12V buses.

The output voltage is adjustable down to 0.9V; higher voltages can be obtained with an external voltage divider.

High peak current gate drivers provide for fast switching to the external power section, and the output current can be in excess of 20A.

L6910 assures protections against load overcurrent and overvoltage. An internal crowbar is also provided turning on the low side mosfet as long as the over-voltage is detected. In case of over-current detection, the soft start capacitor is discharged and the system works in HICCUP mode.




Parameters:

Technical/Catalog InformationL6910
VendorSTMicroelectronics
CategoryIntegrated Circuits (ICs)
PWM TypeVoltage Mode
Number of Outputs1
Package / Case16-SOIC (3.9mm Width)
PackagingTube
Duty Cycle100%
Voltage - Supply4 V ~ 15 V
Frequency-Max1MHz
BuckYes
BoostYes
FlybackNo
InvertingNo
DoublerNo
DividerNo
CukNo
IsolatedNo
Drawing Number*
Operating Temperature-40°C ~ 150°C
Lead Free StatusContains Lead
RoHS StatusRoHS Non-Compliant
