L6918A

Features: · OUTPUT CURRENT IN EXCESS OF 100A· ULTRA FAST LOAD TRANSIENT RESPONSE· REMOTE SENSE BUFFER· INTEGRATED 2A GATE DRIVERS· 5 BIT VID VOLTAGE POSITIONING, VRM 9.0· 0.6% INTERNAL REFERENCE ACCURACY· DIGITAL 2048 STEP SOFT-START· OVP & OCP PROTECTIONS· Rdson or Rsense CURRENT SENSING· 120...

product image

L6918A Picture
See larger image
SeekIC No. : 004389318 Detail

L6918A: Features: · OUTPUT CURRENT IN EXCESS OF 100A· ULTRA FAST LOAD TRANSIENT RESPONSE· REMOTE SENSE BUFFER· INTEGRATED 2A GATE DRIVERS· 5 BIT VID VOLTAGE POSITIONING, VRM 9.0· 0.6% INTERNAL REFERENCE ACC...

L6918A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
L6918A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/10/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· OUTPUT CURRENT IN EXCESS OF 100A
· ULTRA FAST LOAD TRANSIENT RESPONSE
· REMOTE SENSE BUFFER
· INTEGRATED 2A GATE DRIVERS
· 5 BIT VID VOLTAGE POSITIONING, VRM 9.0
· 0.6% INTERNAL REFERENCE ACCURACY
· DIGITAL 2048 STEP SOFT-START
· OVP & OCP PROTECTIONS
· Rdson or Rsense CURRENT SENSING
· 1200KHz EFFECTIVE SWITCHING FREQUENCY, EXTERNALLY ADJUSTABLE
· POWER GOOD OUTPUT AND INHIBIT
· PACKAGE: SO28


Application

· HIGH DENSITY DC-DC FOR SERVERS AND WORKSTATIONS
· SUPPLY FOR HIGH CURRENT MICROPROCESSORS
· DISTRIBUTED POWER


Pinout

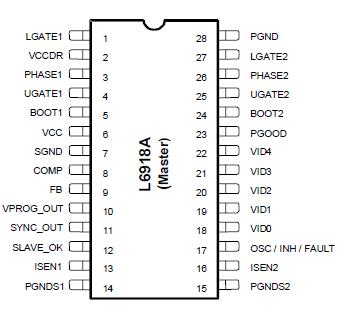

Connection Diagram




Specifications

Symbol Parameter Value Unit
Vcc, VCCDR To PGND 15 V
VBOOT-VPHASE Boot Voltage 15 V
VUGATE1-VPHASE1
VUGATE2-VPHASE2		   15 V
  LGATE1, PHASE1, LGATE2, PHASE2 to PGND -0.3 to Vcc+0.3 V
  VID0 to VID4 -0.3 to 5 V
  All other pins to PGND -0.3 to 7 V
VPHASEx Sustainable Peak Voltage t<20nS @ 600kHz 26 V



Description

L6918A is a master device that it has to be combined with the L6918,slave, realizing a 4-phases topology, interleaved. L6918A kit is specifically designed to provide a high performance/high density DC/DC conversion for high current microprocessors and distributed power. Each device implements a dual-phase step-down controller with a 180° phase-shift between each phase.

A precise 5-bit DAC allows adjusting the output voltage from 1.100V to 1.850V with 25mV binary steps. The high peak current gate drives affords to have high system switching frequency, typically of 1200KHz, and higher by external adjustement.

L6918A  kit assure a fast protection against OVP, UVP and OCP. An internal crowbar, by turning on the low side mosfets, eliminates the need of external protection. In case of over-current, the system works in Constant Current mode.
