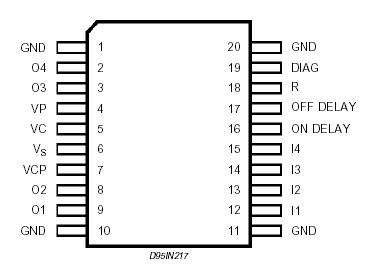

Connection Diagram




Specifications

Symbol Pin Parameter Value Unit
Vs 6 Supply Voltage (tw < 10ms) 50 V
Supply Voltage (DC) 40 V
Vs- Vout   Difference between supply voltage and output voltage internally limited
Vid 16, 17 Externally Forced Voltage -0.3 to 7 V
Iid Externally Forced Current ±1 mA
Ii 12,13,
14,15,
18		 Channel Input Current (forced) ±2 mA
Vi Channel Input Voltage -0.3 to 40 V
Iout 2, 3,
8, 9		 Output Current (see also Isc) internally limited
Vout Output Voltage internally limited
Eil   Energy Inductive Load (Tj =125°C); Each Channel 200 mJ
Ptot   Power Dissipation internally limited
Vdiag 19 External voltage -0.3 to Vs+0.7 V
Idiag Externally forced current -10 to 10 mA
Top   Ambient temperature, operating range -25 to 85 °C
Tj   Junction temperature, operating range (see
Overtemperature Protection)		 -25 to 125 °C
Tstg   Storage temperature -55 to 150 °C



Description

L6376PD is a monolithic quad Intelligent Power Switch in Multipower BCD Technology, for driving inductive, capacitive or resistive loads. Diagnostic for CPU feedback and extensive use of electrical protections make L6376PD  inherently indistructible and suitable for general purpose industrial applications.
