L6370

PinoutSpecifications Symbol Parameter Value Unit VS Supply Voltage (Pin 10) (TW < 10ms) 50 V VSVO SupplytoOutputDifferentialVoltage.SeealsoVCl (Pins10- 9) internallylimited V Vod Externally Forced Voltage(Pin7) -0.3to 7 V Iod Externally Forced Voltage(Pin7) ±1 mA...

product image

L6370 Picture
See larger image
SeekIC No. : 004389279 Detail

L6370: PinoutSpecifications Symbol Parameter Value Unit VS Supply Voltage (Pin 10) (TW < 10ms) 50 V VSVO SupplytoOutputDifferentialVoltage.SeealsoVCl (Pins10- 9) internallylimited V ...

L6370 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
L6370
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

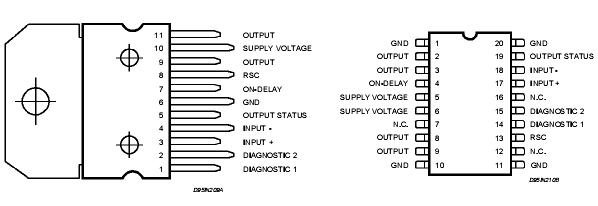

Connection Diagram


Specifications

Symbol Parameter Value Unit
VS Supply Voltage (Pin 10) (TW < 10ms) 50 V
VSVO SupplytoOutputDifferentialVoltage.SeealsoVCl (Pins10- 9) internallylimited V
Vod Externally Forced Voltage(Pin7) -0.3to 7 V
Iod Externally Forced Voltage(Pin7) ±1
 mA
Vi Input Voltage (Pins3/4) -10 to VS +10 V
Vi DifferentialInput Voltage (Pins3 - 4) 43 V
Ii Input Current (Pins 3/4) 20 mA
IO Output Current(Pin 9). See also ISC (Pin 9) internallylimited A
Ptot Power Dissipation.See also THERMAL CHARACTERISTICS. internallylimited W
Top Operating Temperature Range (Tamb) -25 to +85 °C
Tstg StorageTemperature -55 to 150 °C
EI Energy Induct.Load TJ =85°C 1 J



Description

The L6370 is a monolithic Intelligent Power Switch in MultipowerBCD Technology,for driving inductive or resistive loads. An internal Clamping Diode enables the fast demagnetizationof induc- tive loads. Diagnosticfor CPU feedback and ex- tensive useof electricalprotectionsmake this de- vice extremely rugged and specially suitable for industrialautomationapplications.
