L6376

Power Switch ICs - Power Distribution 0.5A Intel Power Sw

product image

L6376 Picture
See larger image
SeekIC No. : 00630828 Detail

L6376: Power Switch ICs - Power Distribution 0.5A Intel Power Sw

L6376 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
L6376
Mfg:
STMicroelectronics
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/10/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Number of Outputs : 4 Operating Supply Voltage : 9.5 V to 35 V
Maximum Operating Temperature : + 85 C Mounting Style : Through Hole
Package / Case : Power PDIP-20

Description

On Resistance (Max) :
On Time (Max) :
Off Time (Max) :
Supply Current (Max) :
Operating Supply Voltage : 9.5 V to 35 V
Maximum Operating Temperature : + 85 C
Mounting Style : Through Hole
Number of Outputs : 4
Package / Case : Power PDIP-20


Pinout

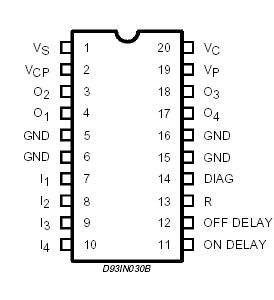

Connection Diagram


Specifications

Symbol Pin Parameter Value Unit
Vs 6 Supply Voltage (tw < 10ms) 50 V
Supply Voltage (DC) 40 V
Vs- Vout   Difference between supply voltage and output voltage internally limited
Vid 16, 17 Externally Forced Voltage -0.3 to 7 V
Iid Externally Forced Current ±1 mA
Ii 12,13,
14,15,
18		 Channel Input Current (forced) ±2 mA
Vi Channel Input Voltage -0.3 to 40 V
Iout 2, 3,
8, 9		 Output Current (see also Isc) internally limited
Vout Output Voltage internally limited
Eil   Energy Inductive Load (Tj =125°C); Each Channel 200 mJ
Ptot   Power Dissipation internally limited
Vdiag 19 External voltage -0.3 to Vs+0.7 V
Idiag Externally forced current -10 to 10 mA
Top   Ambient temperature, operating range -25 to 85 °C
Tj   Junction temperature, operating range (see
Overtemperature Protection)		 -25 to 125 °C
Tstg   Storage temperature -55 to 150 °C



Description

L6376 is a monolithic quad Intelligent Power Switch in Multipower BCD Technology, for driving inductive, capacitive or resistive loads. Diagnostic for CPU feedback and extensive use of electrical protections make L6376 inherently indistructible and suitable for general purpose industrial applications.
