L6375D

Product :
Rise Time :
Fall Time :
Maximum Power Dissipation :
Supply Voltage - Min : 8 V
Mounting Style : SMD/SMT
Packaging : Tube
Supply Voltage - Max : 35 V
Type : High Side
Maximum Operating Temperature : + 85 C
Package / Case : SO-20
Supply Current : 800 uA

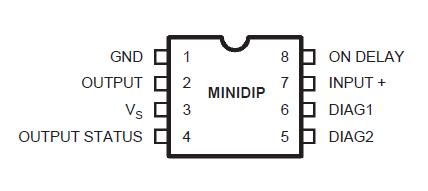

Pinout




Specifications

Symbol	Pin	Parameter	Value	Unit
Vs	3	Supply Voltage (tw < 10 ms)	50	V
Vs	3	Supply Voltage (DC)	40	V
Vs -Vout	3 vs 2	Supply to Output Differential voltage	internally limited
Vod	5	Externally Forced Voltage	-0.3 to 7	V
Iod	5	Externally Forced Current	±1	mA
Iout	2	Output Current (see also Isc)	internally limited
Vout	2	Output Voltage	internally limited	V
Ptot		Power Dissipation	internally limited
Vdiag	5.6	External voltage	-0.3 to 40	V
Idiag	5.6	Externally forced current	-10 to 10	mA
Ii	7	Input Current	20	mA
Vi	7	Input Voltage	-10 to Vs +0.3	V
Top		Ambient temperature, operating range	-25 to 85	°C
Tj		Junction temperature, operatingrange (see Overtemperature Protection)	-25 to 125	°C
Tstg		Storage temperature	-55 to 150	°C
EI		Energy Induct. Load TJ = 85°C	200	mJ

Description

The L6375D is a monolithic fully protected, full diagnostic 0.5A Intelligent Power Switch. L6375Dis designed to drive any kind of R-L-C load with controlled output voltage slew rate and non dissipative short circuit protection. An internal Clamping Diode enables the fast demagnetization of inductive loads. Diagnostic for CPU feedback and extensive use of electrical protections make L6375Dextremely rugged and specially suitable for industrial automation applications.

Parameters:

Technical/Catalog Information	L6375D
Vendor	STMicroelectronics
Category	Integrated Circuits (ICs)
Package / Case	20-SOIC (7.5mm Width)
Mounting Type	Surface Mount
Type	High Side
Voltage - Supply	8 V ~ 52 V
On-State Resistance	-
Current - Output / Channel	500mA
Current - Peak Output	1.1A
Packaging	Tube
Input Type	Non-Inverting
Number of Outputs	1
Operating Temperature	-25°C ~ 125°C
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	L6375D L6375D
