Product Details

Description

Pinout

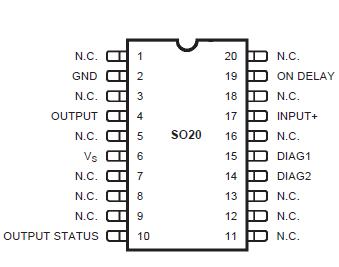

Connection Diagram

Specifications

Symbol	Pin	Parameter	Value	Unit
V_s	3	Supply Voltage (tw < 10 ms)	50	V
V_s	3	Supply Voltage (DC)	40	V
V_s -V_out	3 vs 2	Supply to Output Differential voltage	internally limited
V_od	5	Externally Forced Voltage	-0.3 to 7	V
I_od	5	Externally Forced Current	±1	mA
I_out	2	Output Current (see also Isc)	internally limited
V_out	2	Output Voltage	internally limited	V
P_tot		Power Dissipation	internally limited
V_diag	5.6	External voltage	-0.3 to 40	V
I_diag	5.6	Externally forced current	-10 to 10	mA
I_i	7	Input Current	20	mA
V_i	7	Input Voltage	-10 to Vs +0.3	V
T_op		Ambient temperature, operating range	-25 to 85	°C
T_j		Junction temperature, operatingrange (see Overtemperature Protection)	-25 to 125	°C
T_stg		Storage temperature	-55 to 150	°C
E_I		Energy Induct. Load TJ = 85°C	200	mJ

Description

The L6375 is a monolithic fully protected, full diagnostic 0.5A Intelligent Power Switch. L6375 is designed to drive any kind of R-L-C load with controlled output voltage slew rate and non dissipative short circuit protection. An internal Clamping Diode enables the fast demagnetization of inductive loads. Diagnostic for CPU feedback and extensive use of electrical protections make L6375Vextremely rugged and specially suitable for industrial automation applications.
