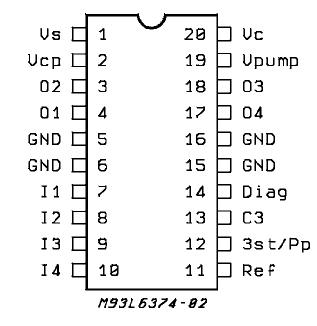

Connection Diagram


Specifications

Symbol Pin Parameter Value Unit
VS 1 Supply Voltage(tW 10ms) 50 V
Supply Voltage(DC) 40 V
Vilog 12, 13 Logic InputVoltage (DC) -0.3 to 7 V
Iilog Logic Inputforced current,per pin ±1 mA
Ii 7, 8,
9, 10		 Channel Input Current (forced) ±2 mA
Vi Channel Input Voltage - 7 to35 V
Iout 3, 4,
17,18		 Output Current (forced, apartfrom inductiveload) ±100 mA
Output Current (forced, apartfrom inductiveload)
same tW 10ms		 ±1 A
Vout Output Voltage (forced, notresultingfrom an inductive
kick)		 -0.3to VS +0.3 V
Iset 11 Setting pin forced current ±1 mA
Vset Setting pin forced voltage -0.3 to 5 V
Vdiag 14 Externalvoltage -0.3 to35 V
Idiag Externallyforced current -10 to 10 mA
VC3 13 Voltage onthe delay capacitor,externally forced -0.3 to 4.5 V
Top   Ambient temperature, operating range -25 to 85 °C
Tj   Junction temperature, operatingrange(see
OvertemperatureProtection)		 -25 to125 °C
Tstg   Storage temperature -55 to150 °C



Description

TheL6374 is especiallydesignedto be used as a line driver in industrial control systems based on the24Vsignallevels(IEC1131,24VDC).
