L6280

PinoutSpecifications Symbol Parameter Value Unit VS Power Supply Voltage (Note A) V VSS Logic Supply Voltage V V13 Pin 13 Input Voltage (Note B) 60 V VDHS High Side Out Transistor Driving Voltage (Note B,C) 18 V VO Output Vo...

product image

L6280 Picture
See larger image
SeekIC No. : 004389271 Detail

L6280: PinoutSpecifications Symbol Parameter Value Unit VS Power Supply Voltage (Note A) V VSS Logic Supply Voltage V V13 Pin 13 Input Voltage (Note B) ...

L6280 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
L6280
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/10/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

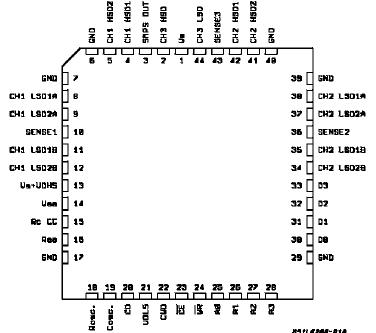

Connection Diagram


Specifications

Symbol
Parameter
Value
Unit
VS
 Power Supply Voltage (Note A)
V
VSS
 Logic Supply Voltage
V
V13
 Pin 13 Input Voltage (Note B)
60
V
VDHS
 High Side Out Transistor Driving Voltage (Note B,C)
18
V
VO
 Output Voltage. CH1; CH2: Unipolar Motor Drive (Note D)
CH3
60
60
V
VOD
 Differential Output Voltage CH1; CH2; Full Bridge Configuration (Note E)
60
V
Vsense
 Sensing Voltage
-1 to 2
V
VI
 Logic Input Voltage
-0.3 to VSS +0.3
V
ILSD
 Low Side Driver Input Current
CH1; CH2 DC Operation
Peak (Note F)
CH3 DC Operation
Peak (Note G)
0.7
2
3
4.4
A
A
A
A
IHSD
 High Side Driver Onput Current
CH1; CH2 DC Operation
Peak (Note F)
CH3 DC Operation
Peak (Note G)
1
2
3
4.4
A
A
A
A
ISSOUT
 SMPS Output Current (Continuous)
(Peak; TON < 5ms)
1
2
A
A
IRES
 Reset Output Open Drain Input Current
16
mA
Ptot
 Total Power Dissipation atTamb = 70°C (Note H)
1.6
W
Tstg; Tj
 Storage an Junction Temperature Range
-40 to 150
°C



Description

The L6280 is a multipower driver system for motor nd solenoid control applicatios that connects direc ly o a microprocessor bus. Realized in Multipower CD technology -- which combines isolated MOS transistors, CMOS & bipolar circuits on the ame chip -- it integrates two 1A motor drivers channels 1 & 2) a 3A solenoid driver (channel 3) nd a 5V switchmode power supply.

All of the drivers in the L6280 are controlled by a icroprocessor which loads commands and eads diagnostic information, treating the device s a peripheral. Channels 1 and 2 feature a programmable utput DMOS transistor configuration hat can be set during the initialization phase.

Thanks to very low dissipation of its DMOS power tages the L6280 needs no heatsink and is packaged n a 44-lead PLCC package.
