Product Details

Description



Features:

*ABLE TO DRIVE BOTH WINDINGS OF A BIPOLAR STEPPER MOTOR OR TWO DC MOTORS
* OUTPUT CURRENT UP TO 1.3A EACH WINDING
* WIDE VOLTAGE RANGE: 12V TO 40V
* FOUR QUADRANT CURRENT CONTROL, IDEAL FOR MICROSTEPPING AND DC MOTOR CONTROL
* PRECISION PWM CONTROL
*NO NEED FOR RECIRCULATION DIODES
*TTL/CMOS COMPATIBLE INPUTS
* CROSS CONDUCTION PROTECTION
* THERMAL SHUTDOW

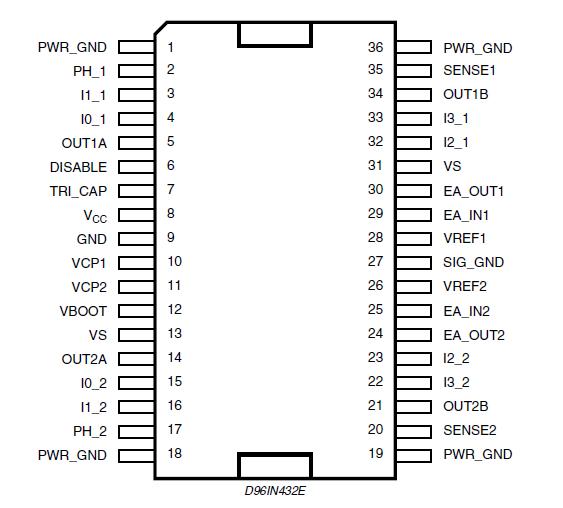

Pinout

Connection Diagram


Specifications

Symbol Parameter Value Unit
Vs Supply Voltage 45 V
VDD Logic Supply Voltage 7 V
Vref1/Vref2 Reference Voltage 2.5  V
IO Output Current (peak) (1) 2 A
IO Output Current (continuous) 1.3 A
Vin Logic Input Voltage Range -0.3 to 7 V
Vboot Bootstrap Supply 60 V
Vboot - Vs Maximum Vgate applicable 15 V
Tj Junction Temperature 150 °C
Tstg Storage Temperature Range -55 to 150 °C



Description

L6258EP is a dual full bridge for motor control applications realized in BCD technology, with the capability of driving both windings of a bipolar stepper motor or bidirectionally control two DC motors.

L6258EP and a few external components form a complete control and drive circuit. L6258EP has high efficiency phase shift chopping that allows a very low current ripple at the lowest current control levels, and makes this device ideal for steppers as well as for DC motors. The power stage is a dual DMOS full bridge capable of sustaining up to 40V, and includes the diodes for current recirculation.The output current capability is 1.3A per winding in continuous mode, with peak start-up current up to 2A. A thermal protection circuitry disables the outputs if the chip temperature exceeds the safe limits.
