Product Details

Description



Features:

·OUTPUT VOLTAGE TO 100 V .
·0.7 W RDS(ON) .
·SUPPLY VOLTAGE UP TO 60 V .
·LOW INPUT CURRENT .
·TTL/CMOS COMPATIBLE INPUTS
·HIGH SWITCHING FREQUENCY (200 KHz)

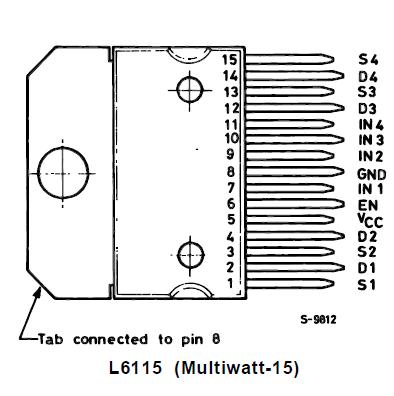

Pinout

Connection Diagram




Specifications

Symbol
Parameter
Value
Unit
VDS
 Drain-source Voltage
100
V
VCC
 Supply Voltage
60
V
ID
 Continuous Drain Current @ Tpins = 90 °C, POWERDIP
@ Tcase = 90 °C, MULTIWATT
1.5
3
A
A
IDM (*)
 Pulsed Drain Current POWERDIP
MULTIWATT
5
8
A
A
ISD
 Continuous Source-drain @ Tpins = 90 °C, POWERDIP
Diode Current @ Tcase = 90 °C, MULTIWATT
1.5
3
A
A
ISDM
 Pulsed Source Drain Diode Current POWERDIP
MULTIWATT
5
8
A
A
VIN
 Input Voltage
7
V
VEN
 Enable Voltage
7
V
VS
 Source Voltage
1 to+ 4
V
Ptot
 Total Power Dissipation @ Tpins = 90 °C, POWERDIP
@ Tcase = 90 °C, MULTIWATT
@ Tamb = 70 °C, POWERDIP
@ Tamb = 70 °C, MULTIWATT
4.3
20
1.3
2.3
W
W
W
W
Tstg, Tj
 Storage and Junction Temperature Range
40 to + 150
°C



Description

Realized with the Multipower-BCD mixed bipolar/ MOS/DMOS process, the L6114/L6115 monolithic uad DMOS switch is designed for high current, igh voltage switching applications. Each of the four witches is controlled by a logic input and  all four are ontrolled by a common enable input. All inputs are TL/CMOS compatible for direct connection to logic ircuits. Each source is available for the insertion of he sense resistors in current control applications.

Two versions are available : the L6114 mounted in a Powerdip 14+3+3 package and the L6115 in a 15- lead Multiwatt package.
