L6114

Features: ·OUTPUT VOLTAGE TO 100 V .·0.7 W RDS(ON) .·SUPPLY VOLTAGE UP TO 60 V .·LOW INPUT CURRENT .·TTL/CMOS COMPATIBLE INPUTS ·HIGH SWITCHING FREQUENCY (200 KHz)PinoutSpecifications Symbol Parameter Value Unit VDS Drain-source Voltage 100 V VCC Supply Voltage ...

product image

L6114 Picture
See larger image
SeekIC No. : 004389225 Detail

L6114: Features: ·OUTPUT VOLTAGE TO 100 V .·0.7 W RDS(ON) .·SUPPLY VOLTAGE UP TO 60 V .·LOW INPUT CURRENT .·TTL/CMOS COMPATIBLE INPUTS ·HIGH SWITCHING FREQUENCY (200 KHz)PinoutSpecifications Symbol ...

L6114 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
L6114
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·OUTPUT VOLTAGE TO 100 V .
·0.7 W RDS(ON) .
·SUPPLY VOLTAGE UP TO 60 V .
·LOW INPUT CURRENT .
·TTL/CMOS COMPATIBLE INPUTS
·HIGH SWITCHING FREQUENCY (200 KHz)


Pinout

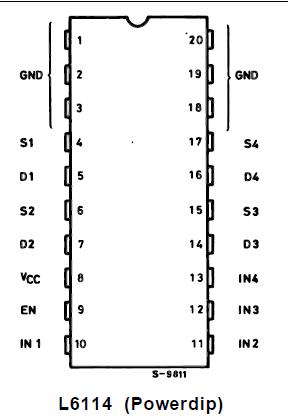

Connection Diagram


Specifications

Symbol
Parameter
Value
Unit
VDS
 Drain-source Voltage
100
V
VCC
 Supply Voltage
60
V
ID
 Continuous Drain Current @ Tpins = 90 °C, POWERDIP
@ Tcase = 90 °C, MULTIWATT
1.5
3
A
A
IDM (*)
 Pulsed Drain Current POWERDIP
MULTIWATT
5
8
A
A
ISD
 Continuous Source-drain @ Tpins = 90 °C, POWERDIP
Diode Current @ Tcase = 90 °C, MULTIWATT
1.5
3
A
A
ISDM
 Pulsed Source Drain Diode Current POWERDIP
MULTIWATT
5
8
A
A
VIN
 Input Voltage
7
V
VEN
 Enable Voltage
7
V
VS
 Source Voltage
1 to+ 4
V
Ptot
 Total Power Dissipation @ Tpins = 90 °C, POWERDIP
@ Tcase = 90 °C, MULTIWATT
@ Tamb = 70 °C, POWERDIP
@ Tamb = 70 °C, MULTIWATT
4.3
20
1.3
2.3
W
W
W
W
Tstg, Tj
 Storage and Junction Temperature Range
40 to + 150
°C



Description

Realized with the Multipower-BCD mixed bipolar/ MOS/DMOS process, the L6114/15 monolithic uad DMOS switch is designed for high current, igh voltage switching applications. Each of the four witches is controlled by a logic input and  all four are ontrolled by a common enable input. All inputs are TL/CMOS compatible for direct connection to logic ircuits. Each source is available for the insertion of he sense resistors in current control applications.

Two versions are available : the L6114 mounted in a Powerdip 14+3+3 package and the L6115 in a 15- lead Multiwatt package.
