L4964

Switching Converters, Regulators & Controllers 5.1 to 28V 4.0 Amp

product image

L4964 Picture
See larger image
SeekIC No. : 00585876 Detail

L4964: Switching Converters, Regulators & Controllers 5.1 to 28V 4.0 Amp

L4964 Data Sheet

floor Price/Ceiling Price

US $ 2.98~4.07 / Piece | Get Latest Price
Part Number:
L4964
Mfg:
STMicroelectronics
Supply Ability:
5000

Price Break

  • Qty
  • 0~136
  • 136~250
  • 250~500
  • 500~1000
  • Unit Price
  • $4.07
  • $3.74
  • $3.41
  • $2.98
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/10/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Output Voltage : 38 V Mounting Style : Through Hole
Package / Case : Multiwatt-15 Packaging : Tube

Description

Output Current :
Output Power :
Input Voltage :
Switching Frequency :
Operating Temperature Range :
Packaging : Tube
Mounting Style : Through Hole
Package / Case : Multiwatt-15
Output Voltage : 38 V


Pinout

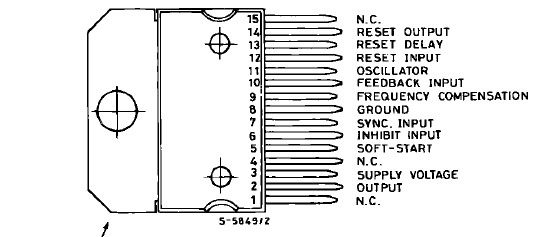

Connection Diagram


Specifications

Symbol Parameter Value Unit
Vi Input voltage 36 V
Vi - V2 Input to output voltage difference 38 V
V2 Negative output DC voltage -1
-7		 V
V12 Negative output peak voltage at t = 0.1ms; f = 100KHz 10 V
V5,V7,V9 Voltage at pin 3 and 6 Vi V
V10,V6,V13 Voltage at pin 2 1 V
V14 Pin 3 sink current 20 mA
I9 Pin 5 source current 50 mA
I11 Power dissipation at Tcase 90°C 20 W
Tj, Tstg Junction and storage temperature -40 to 150 °C



Description

The L4964 is a stepdownpower switching regulator delivering4A at a voltage variable from 5.1V to 28V.

Features of the device include overload protection, soft start, remote inhibit, thermal protection, a reset output for microprocessors and a PWMcomparator input for synchronization in multichipconfigurations.

The L4964 is mounted in a 15-leadMultiwatt) plastic power package and requires very few external components.

Efficient operation at switching frequencies up to 120kHz allowsa reductionin the size and cost ofexternal filter components.




Parameters:

Technical/Catalog InformationL4964
VendorSTMicroelectronics
CategoryIntegrated Circuits (ICs)
TypeStep-Down (Buck)
Number of Outputs1
Voltage - Input9 ~ 36 V
Voltage - Output5.1 ~ 28 V
Current - Output4A
Power - Output20W
Package / CaseMultiwatt-15 (Vertical, Bent and Staggered Leads)
PackagingTube
Internal Switch(s)Yes
SynchronousYes
Rds (On)-
Operating Temperature0°C ~ 125°C
Frequency - Switching50kHz
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names L4964
L4964
497 1409 5 ND
49714095ND
497-1409-5
