L4960

Output Power :
Packaging : Tube
Mounting Style : Through Hole
Output Voltage : 40 V
Input Voltage : 9 V to 46 V
Operating Temperature Range : - 40 C to + 150 C
Output Current : 2.5 A
Switching Frequency : 150 KHz
Package / Case : HEPTAWATT

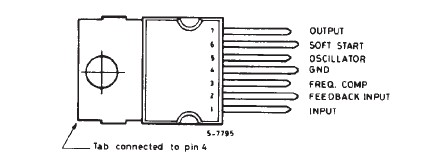

Pinout




Specifications

Symbol	Parameter	Value	Unit
V1	Input voltage	50	V
V1 - V7	Input to output voltage difference	50	V
V7	Negative output DC voltage	-1	V
	Negative output peak voltage at t = 0.1ms; f = 100KHz	-5	V
V3,V6	Voltage at pin 3 and 6	5.5	V
V2	Voltage at pin 2	7	V
I3	Pin 3 sink current	1	mA
I5	Pin 5 source current	20	mA
Ptot	Power dissipation at Tcase 3 90°C	15	W
Tj, Tstg	Junction and storage temperature	-40 to 150	°C

Description

The L4960 is a monolithic power switching regulatordelivering 2.5A at a voltage variable from 5V to40V in step down configuration.

Features of the device include current limiting, softstart, thermal protection and 0 to 100% duty cycle for continuous operation mode.

TheL4960 is mountedina Heptawattplastic power package and requires very few external components.

Efficient operation at switching frequencies up to 150KHz allows a reduction in the size and cost of external filter components.

Parameters:

Technical/Catalog Information	L4960
Vendor	STMicroelectronics
Category	Integrated Circuits (ICs)
Type	Step-Down (Buck)
Number of Outputs	1
Voltage - Input	9 ~ 46 V
Voltage - Output	5.1 ~ 40 V
Current - Output	2.5A
Power - Output	15W
Package / Case	Heptawatt-7 (Vertical, Bent and Staggered Leads)
Packaging	Tube
Internal Switch(s)	Yes
Synchronous	Yes
Rds (On)	-
Operating Temperature	-40°C ~ 150°C
Frequency - Switching	100kHz ~ 150kHz
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	L4960 L4960 497 1406 5 ND 49714065ND 497-1406-5
