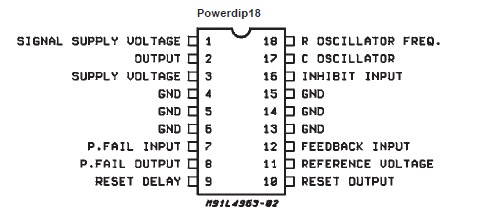

PinoutSpecifications Symbol Parameter Value Unit SO20 Powerdip V1 Input Voltage (pin 1 and pin 3 connected togheter) 47 V V3V2 Input to Output Voltage Difference 47 V V2 Negative OutputDC Voltage -1 V V2 Negative Output Peak Voltage at t=0.2 ms, f=50kHz -5 V ...
L4963N: PinoutSpecifications Symbol Parameter Value Unit SO20 Powerdip V1 Input Voltage (pin 1 and pin 3 connected togheter) 47 V V3V2 Input to Output Voltage Difference 47 V V2 ...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Symbol | Parameter | Value | Unit | |
SO20 | Powerdip | |||
V1 | Input Voltage (pin 1 and pin 3 connected togheter) | 47 | V | |
V3V2 | Input to Output Voltage Difference | 47 | V | |
V2 | Negative OutputDC Voltage | -1 | V | |
V2 | Negative Output Peak Voltage at t=0.2 ms, f=50kHz | -5 | V | |
V7 | V8 | Power Fail Input | 25 | V |
V9,V11 | V8,V10 | Reset and Power Fail Output | V1 | |
V10 | V9 | Reset Delay Input | 5.5 | V |
V13,V16 | V12,V16 | Feedback and Inhibit Inputs | 7 | V |
V19,V20 | V17,V16 | Oscillator Inputs | 5.5 | V |
Ptot | Total Power Dissipation Tpins 3 90°C (Power DIP) (Tamb = 70°C no copper area on PCB) (Tamb = 70°C, 4cm2 copper area on PCB) |
5 1.3 2 |
W W W | |
Tstg, Tj | Storage & Junction Temperature (Tamb = 70°C 6cm2 copper area on PCB) |
40 to 150 1.45 |
°C W | |
Ptot | Total Power Dissipation Tpins 390°C (SO20L) | 4 | W |
The L4963is a monolithicpower switching regulator delivering1.5Aat 5.1V.The output voltageis adjustable from 5.1V to 36V, working in discontinuous variable frequency mode. Features of the device include remote inhibit, internal current limiting and thermal protection, reset and power fail outputs for microprocessor.
The L4963 is mounted in a 12+3+3 lead Powerdip (L4963) and SO20 large (L4963D) plastic packages and requires very few external components.
