Product Details

Description

Features:

• Fast Access Time 15, 17, 20ns(Max.)
• Low Power Dissipation
    Standby (TTL) : 50mA(Max.)
                  (CMOS) : 10mA(Max.)
    Operating KM6164002A - 15 : 210mA(Max.)
                    KM6164002A - 17 : 205mA(Max.)
                     KM6164002A - 20 : 200mA(Max.)
• Single 5.0V±10% Power Supply
• TTL Compatible Inputs and Outputs
• I/O Compatible with 3.3V Devices
• Fully Static Operation
   - No Clock or Refresh required
• Three State Outputs
• Center Power/Ground Pin Configuration
• Data Byte Control ; LB: I/O1~ I/O8, UB: I/O9~ I/O16
• Standard Pin Configuration
                   KM6164002AJ : 44-SOJ-400
                   KM6164002AT : 44-TSOP2-400F

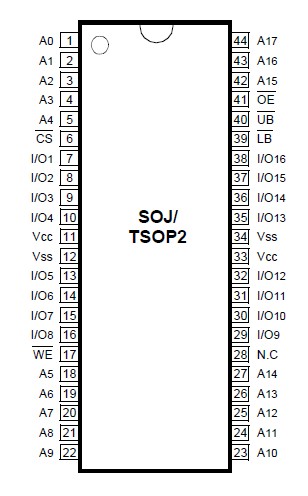

Pinout

Connection Diagram

Specifications

Parameter		Symbol	Rating	Unit
Voltage on Any Pin Relative to V_SS		V_IN, V_OUT	-0.5 to 7.0	V
Voltage on V_CC Supply Relative to V_SS		V_CC	-0.5 to 7.0	V
Power Dissipation		P_D	1.0	W
Storage Temperature		T_STG	-65 to 150	°C
Operating Temperature	Commercial	T_A	0 to 70	°C
	Extended	T_A	-25 to 85	°C
	Industrial	T_A	-40 to 85	°C

Description

The KM6164002A is a 4,194,304-bit high-speed Static Random Access Memory organized as 262,144 words by 16 bits. The KM6164002A uses 16 common input and output lines and has an output enable pin which operates faster than address access time at read cycle. Also it allows that lower and upper byte access by data byte control(UB, LB). The device is fabricated using SAMSUNG¢s advanced CMOS process and designed for high-speed circuit technology. It is particularly well suited for use in high-density high-speed system applications. The KM6164002A is packaged in a 400mil 44-pin plastic SOJ or TSOP(II) forward.
