KL5BUDV003

Features: `33MHz PCI interface `USB 2.0 standard embedded transceiver. `30MHz USB 2.0 SIE BUS for High-Speed SIE operation `Double packet buffer - 512*2 HS, 64B*2 FS `Internal DMA operation between the High-Speed SIE and Double Buffer `High-Speed chirp protocol `High-Speed/Full-Speed compatibility...

product image

KL5BUDV003 Picture
See larger image
SeekIC No. : 004385885 Detail

KL5BUDV003: Features: `33MHz PCI interface `USB 2.0 standard embedded transceiver. `30MHz USB 2.0 SIE BUS for High-Speed SIE operation `Double packet buffer - 512*2 HS, 64B*2 FS `Internal DMA operation between ...

KL5BUDV003 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
KL5BUDV003
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/30

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`33MHz PCI interface
`USB 2.0 standard embedded transceiver.
`30MHz USB 2.0 SIE BUS for High-Speed SIE operation
`Double packet buffer - 512*2 HS, 64B*2 FS
`Internal DMA operation between the High-Speed SIE and Double Buffer
`High-Speed chirp protocol
`High-Speed/Full-Speed compatibility
`USB basic operation and transaction control
`Up to 5 endpoints
`PCI interface for Target and Master (2DMA) modes
`Page and Descriptor DMA Modes
`USB data access by PCI target or DMA
`0.18u Std cell technology Vdd = 3.3V, Ta = 0~70


Pinout

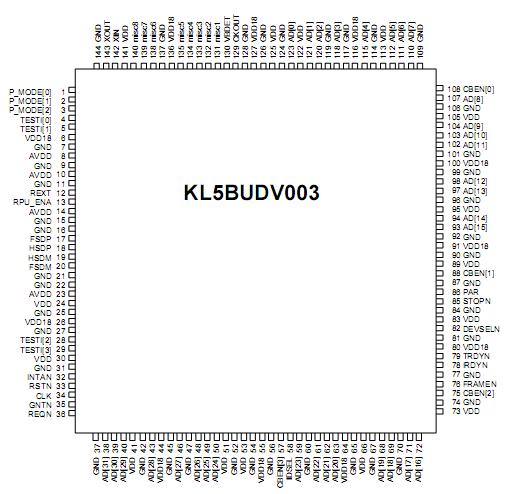

Connection Diagram


Description

The Kawasaki KL5KBUDV003 is a high performance device that transfers data between the USB2.0 high-speed BUS and the PCI 33MHz, 32 bit BUS.  This 1 chip solution has USB 2.0 transceiver embedded reducing space and cost.  The KL5KBUDV003 is an ideal solution to convert a PCI device to a USB2.0 Transceiver, HS_SIE USB2.0 Transceiver interface, 4 sets of high-speed bulk packet size buffers, PCI interface and PCI master 2DMA channel support.
