KL5BUDV002

Features: · 33MHz PCI interface· 30MHz USB 2.0 SIE BUS for High-Speed SIE operation· Double packet buffer - 512x2 HS, 64Bx2 FS· Internal DMA operation between the High-Speed SIE and Double Buffer· Interfaces with USB 2.0 PHY· High-Speed chirp protocol· High-Speed/Full-Speed compatibility· USB basi...

product image

KL5BUDV002 Picture
See larger image
SeekIC No. : 004385884 Detail

KL5BUDV002: Features: · 33MHz PCI interface· 30MHz USB 2.0 SIE BUS for High-Speed SIE operation· Double packet buffer - 512x2 HS, 64Bx2 FS· Internal DMA operation between the High-Speed SIE and Double Buffer· I...

KL5BUDV002 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
KL5BUDV002
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/20

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· 33MHz PCI interface
· 30MHz USB 2.0 SIE BUS for High-Speed SIE operation
· Double packet buffer - 512x2 HS, 64Bx2 FS
· Internal DMA operation between the High-Speed SIE and Double Buffer
· Interfaces with USB 2.0 PHY
· High-Speed chirp protocol
· High-Speed/Full-Speed compatibility
· USB basic operation and transaction control
· Up to 5 endpoints
· PCI interface for Target and Master (2 DMA) modes
· Page and Descriptor DMA Modes
· USB data access by PCI target or DMA
· 0.35u Std cell technology
· Vdd = 3.3V, Ta = 0~70°C
· 144 pin LQFP package (20 mm2)

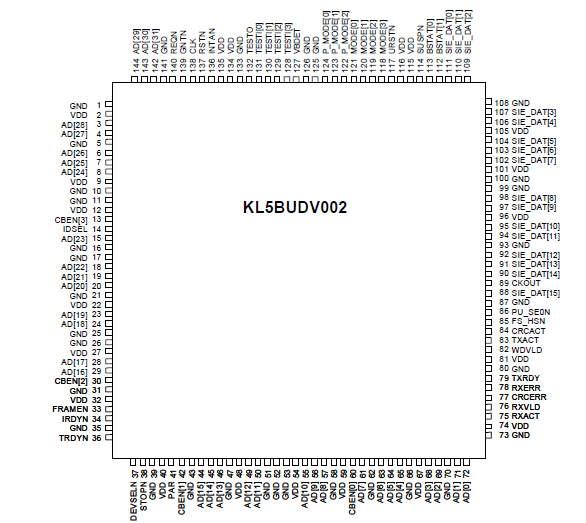

Pinout

Connection Diagram


Description

The Kawasaki KL5BUDV002 is a high performance device that transfers data between the USB2.0 highspeed BUS and the PCI 33MHz, 32 bit BUS. This device easily interfaces with our USB 2.0 transceivers, the KL5KUSB200 and KL5KUSB201. The KL5BUDV002 is an ideal solution to convert a PCI device to a USB2.0 interface with its HS_SIE USB2.0 Transceiver interface, 4 sets of high-speed bulk packet size  buffers, PCI interface and PCI master 2DMA channel support.
