KGL4216

Features: • High-speed operation: 11-Gbps data rate (min)• Low-power dissipation: 400 mW (typ.) using 2-V power-supply• 0.2-m gate length GaAs MESFET process• MCFF ( Memory Cell type Flip Flop ) technology• 24-pin ceramic packageApplication• High-speed optical c...

product image

KGL4216 Picture
See larger image
SeekIC No. : 004385316 Detail

KGL4216: Features: • High-speed operation: 11-Gbps data rate (min)• Low-power dissipation: 400 mW (typ.) using 2-V power-supply• 0.2-m gate length GaAs MESFET process• MCFF ( Memory C...

KGL4216 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
KGL4216
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/20

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• High-speed operation: 11-Gbps data rate (min)
• Low-power dissipation: 400 mW (typ.) using 2-V power-supply
• 0.2-m gate length GaAs MESFET process
• MCFF ( Memory Cell type Flip Flop ) technology
• 24-pin ceramic package


Application

• High-speed optical communication systems: 10 Gbps
• High-speed test equipment


Pinout

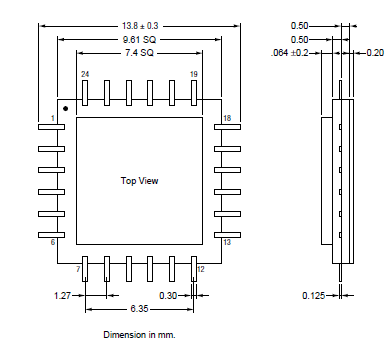

Connection Diagram


Specifications


Parameter
Symbol
Min.
Max.
Units
Supply Voltage
VDD
-0.3
2.3
V
Clock Input Voltage
VCI
-0.3
1.5
V
Clock Reference Bias Voltage
VRI
-0.3
1.5
V
Temperature at Package Base under Bias
Ts
-45
100
Storage Temperature
Tst
-45
125



Description

Oki Semiconductor's KGL4216 is a 10-Gbps T-Flip Flop IC designed for ultra high-speed digital ommunications systems. The KGL4216 uses 0.2-m gate length GaAs MESFETs and Oki's unique MCFF  Memory Cell type Flip Flop ) technology to achieve operations of over 11-GHz. The KGL4216 is vailable as a 24-pin ceramic packaged device. Due to the KGL4216's high sensitivity, capacitive oupling is recommended for the KGL4216's I/O connections.
