Features:

` Architecture
• Design Technology: 0.12m
• Voltage Supply
- 1.8V device(KFG5616Q1M) : 1.7V~1.95V
- 2.65V device(KFG5616D1M) : 2.4V~2.9V
- 3.3V device(KFG5616U1M) : 2.7V~3.6V
• Organization
- Host Interface:16bit
• Internal BufferRAM(3K Bytes)
- 1KB for BootRAM, 2KB for DataRAM
• NAND Array
- Page Size : (1K+32)bytes
- Block Size : (64K+2K)bytes
`Performance
• Host Interface type
- Synchronous Burst Read
: Clock Frequency: up to 54MHz
: Linear Burst - 4 , 8 , 16 , 32 words with wrap-around
: Continuous Sequential Burst(512 words)
- Asynchronous Random Read
: Access time of 76ns
- Asynchronous Random Write
• Programmable Read latency
• Multiple Sector Read
- Read multiple sectors by Sector Count Register(up to 2 sectors)
• Multiple Reset
- Cold Reset / Warm Reset / Hot Reset / NAND Flash Reset
• Power dissipation (typical values, CL=30pF)
- Standby current : 10uA@1.8V device, 15uA@2.65V/3.3V device
- Synchronous Burst Read current(54MHz) : 12mA@1.8V device, 20mA@2.65V/3.3V device
- Load current : 20mA@1.8V device, 20mA@2.65V/3.3V device
- Program current: 20mA@1.8V device, 20mA@2.65V/3.3V device
- Erase current: 15mA@1.8V device, 18mA@2.65V/3.3V device
• Reliable CMOS Floating-Gate Technology
- Endurance : 100K Program/Erase Cycles
- Data Retention : 10 Years
` Hardware Features
• Voltage detector generating internal reset signal from Vcc
• Hardware reset input (RP)
• Data Protection
- Write Protection mode for BootRAM
- Write Protection mode for NAND Flash Array
- Write protection during power-up
- Write protection during power-down
• User-controlled One Time Programmable(OTP) area
• Internal 2bit EDC / 1bit ECC
• Internal Bootloader supports Booting Solution in system
` Software Features
• Handshaking Feature
- INT pin: Indicates Ready / Busy of OneNAND
- Polling method: Provides a software method of detecting the Ready / Busy status of OneNAND
• Detailed chip information by ID register
`Packaging
• Package
- 63ball, 9.5mm x 12mm x max 1.0mmt , 0.8mm ball pitch FBGA
- 48 TSOP 1, 12mm x 20mm, 0.5mm pitch


Pinout

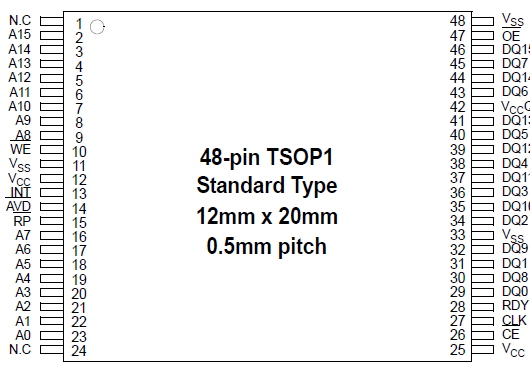

Connection Diagram


Specifications

Parameter
Symbol
Rating
Unit
KFG5616Q1M
KFG5616D1M
KFG5616U1M
Voltage on any pin relative
to VSS
Vcc
VCC
-0.5 to + 2.45
-0.6 to + 4.6
-0.6 to + 4.6
V
All Pins
VIN
-0.5 to + 2.45
-0.6 to + 4.6
-0.6 to + 4.6
Temperature Under Bias
Extended
Tbias
-25 to +125
-10 to +125
-25 to +125
Industrial
-40 to +125
-40 to +125
-40 to +125
Storage Temperature
Tstg
-65 to +150
-65 to +150
-65 to +150
Short Circuit Output Current
IOS
5
5
5
mA
Operating Temperature Extended
TA
-30 to + 85
-30 to + 85
-30 to + 85
Industrial
TA
-
-
-40 to + 85



Description

OneNAND KFG5616U1M-DIB is a single-die chip with standard NOR Flash interface using NAND Flash Array. This KFG5616U1M-DIB is comprised of  ogic and NAND Flash Array and 3KB internal BufferRAM. 1KB BootRAM is used for reserving bootcode, and 2KB DataRAM is used for buffering data. The operating clock frequency is up to 54MHz. This KFG5616U1M-DIB is X16 interface with Host, and has the speed of ~76ns random access time. Actually, it is accessible with minimum 4clock latency(host-driven clock for  synchronous read), but this device adopts the appropriate wait cycles by programmable read latency. OneNAND  rovides the multiple sector read operation by assigning the number of sectors to be read in the sector counter  egister. The KFG5616U1M-DIB includes one block sized OTP(One Time Programmable), which  can be used to increase system security or to provide identification capabilities.
