Product Details

Description



Features:

• Fast Access Time 8,10ns(Max.)
• Low Power Dissipation Standby (TTL) : 20mA(Max.) (CMOS) : 5mA(Max.) Operating K6R1016V1D- 08: 80mA(Max.) K6R1016V1D-10: 65mA(Max.)
• Single 3.3V Power Supply
• TTL Compatible Inputs and Outputs
• Fully Static Operation
- No Clock or Refresh required
• Three State Outputs
• Center Power/Ground Pin Configuration
• Data Byte Control: LB: I/O1~ I/O8, UB: I/O9~ I/O16
• Standard Pin Configuration:
   K6R1016V1D-J: 44-SOJ-400
   K6R1016V1D-T: 44-TSOP2-400BF
   K6R1016V1D-E: 48-TBGA ( 6.0mm X 7.0mm )
   with 0.75mm ball pitch
• Operating in Commercial and Industrial Temperature range.

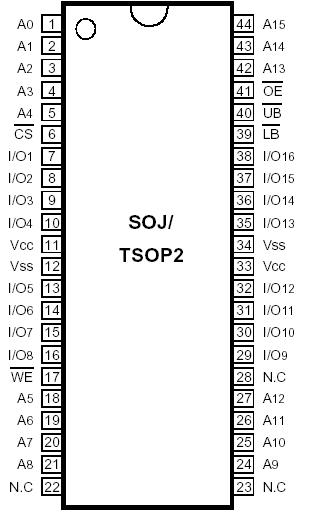

Pinout

Connection Diagram


Specifications

Item Symbol Ratings Unit
Voltage on any pin relative to Vss VIN,VOUT -0.5 to 7.0 V
Voltage on Vcc supply relative to Vss VCC -0.5 to 7.0 V
Power Dissipation PD 1 W
Storage temperature TSTG -65 to 150 °C
Operating Temperature Commercial TA 0 to 70 °C
Industrial TA -40 to 85 °C

* Stresses greater than those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operating sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.




Description

The K6R1016V1D is a 1,048,576-bit high-speed Static Random Access Memory organized as 65,536 words by 16 bits.

The K6R1016V1D uses 16 common input and output lines and has at output enable pin which operates faster than address access time at read cycle. Also it allows that lower and upper byte access by data byte control (UB , LB ). The K6R1016V1D is fabricated using SAMSUNG's advanced CMOS process and designed for high-speed circuit technology. The K6R1016V1D  is particularly well suited for use in high-density high-speed system applications. The K6R1016V1D is packaged in a 400mil 44-pin plastic SOJ or TSOP2 forward or 48-TBGA.
