K6R1016C1C-L

Features:

• Fast Access Time 10,12,15ns(Max.)
• Low Power Dissipation
  Standby (TTL) : 30mA(Max.)
            (CMOS) : 5mA(Max.)
                        0.5mA(Max.) L-ver. only
  Operating K6R1016C1C-10 : 105mA(Max.)
                   K6R1016C1C-12 : 95mA(Max.)
                   K6R1016C1C-15 : 93mA(Max.)
• Single 5.0V±10% Power Supply
• TTL Compatible Inputs and Outputs
• I/O Compatible with 3.3V Device
• Fully Static Operation
  - No Clock or Refresh required
• Three State Outputs
• 2V Minimum Data Retention: L-ver. only
• Center Power/Ground Pin Configuration
• Data Byte Control: LB: I/O1~ I/O8, UB: I/O9~ I/O16
• Standard Pin Configuration:
  K6R1016C1C-J : 44-SOJ-400
  K6R1016C1C-T: 44-TSOP2-400BF
  K6R1016C1C-F: 48-Fine pitch BGA with 0.75 Ball pitch

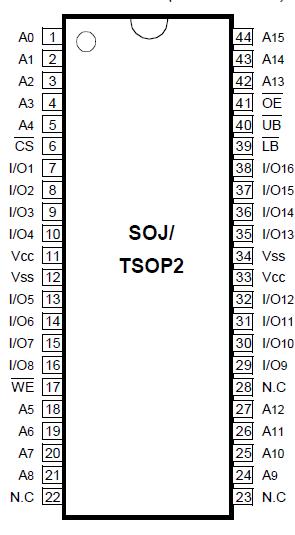

Pinout




Specifications

Parameter		Symbol	Rating	Unit
Voltage on Any Pin Relative to VSS		VIN, VOUT	-0.5 to VCC +0.5	V
Voltage on VCC Supply Relative to VSS		VCC	-0.5 to 7.0	V
Power Dissipation		PD	1.0	W
Storage Temperature		TSTG	-65 to 150	°C
Operating Temperature	Commercial	TA	0 to 70	°C
	Industrial	TA	-40 to 85	°C

* Stresses greater than those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operating sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.


Description

The K6R1016C1C-L is a 1,048,576-bit high-speed Static Random Access Memory organized as 65,536 words by 16 bits. The K6R1016C1C-L uses 16 common input and output lines and has at output enable pin which operates faster than address access time at read cycle. Also it allows that lower and upper byte access by data byte control (UB, LB). The K6R1016C1C-L is fabricated using SAMSUNG¢s advanced CMOS process and designed for high-speed circuit technology. It is particularly well suited for use in high-density high-speed system applications. The K6R1016C1C-L is packaged in a 400mil 44-pin plastic SOJ or TSOP2 forward or 48-Fine pitch BGA.
