K4S561632E-TC75

Features: • JEDEC standard 3.3V power supply • LVTTL compatible with multiplexed address• Four banks operation • MRS cycle with address key programs -. CAS latency (2 & 3) -. Burst length (1, 2, 4, 8 & Full page) -. Burst type (Sequential & Interleave)• ...

product image

K4S561632E-TC75 Picture
See larger image
SeekIC No. : 004382960 Detail

K4S561632E-TC75: Features: • JEDEC standard 3.3V power supply • LVTTL compatible with multiplexed address• Four banks operation • MRS cycle with address key programs -. CAS latency (2 & 3...

K4S561632E-TC75 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
K4S561632E-TC75
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

•  JEDEC standard 3.3V power supply
•  LVTTL compatible with multiplexed address
•  Four banks operation
•  MRS cycle with address key programs
        -. CAS latency (2 & 3)
        -. Burst length (1, 2, 4, 8 & Full page)
        -. Burst type (Sequential & Interleave)
•  All inputs are sampled at the positive going edge of the system clock.
•  Burst read single-bit write operation
•  DQM (x4,x8) & L(U)DQM (x16) for masking
•  Auto & self refresh
•  64ms refresh period (8K Cycle)


Pinout

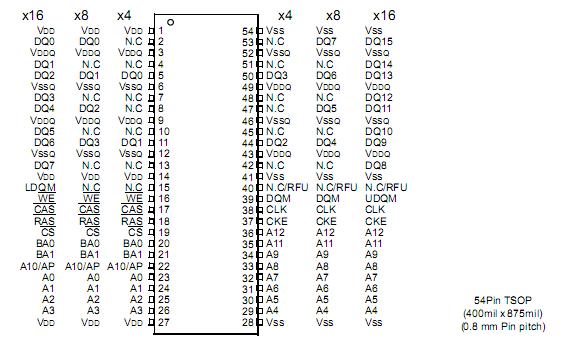

Connection Diagram


Specifications

Parameter
Symbol
Value
Unit
Voltage on any pin relative to Vss
VIN, VOUT
-1.0 ~ 4.6
V
Voltage on VDD supply relative to Vss
VDD, VDDQ
-1.0 ~ 4.6
V
Storage temperature
TSTG
-55 ~ +150
°C
Power dissipation
PD
1
W
Short circuit current
IOS
50
mA



Description

The K4S560432E/K4S560832E/K4S561632E is 268,435,456 bits  synchronous high data rate Dynamic RAM organized as 4 x16,777,216  words by 4 bits/4 x 8,388,608  words by 8bits/4 x 4,194,304 words by 16bits, fabricated with SAMSUNG's high performance CMOS technology. Synchronous design allows precise cycle control with the use of system clock I/O transactions are possible on every clock cycle. Range of operating frequencies, programmable burst length and programmable latencies allow the same device to be useful for a variety of high bandwidth, high performance memory system applications.
