IXBT42N170A

IGBT Transistors

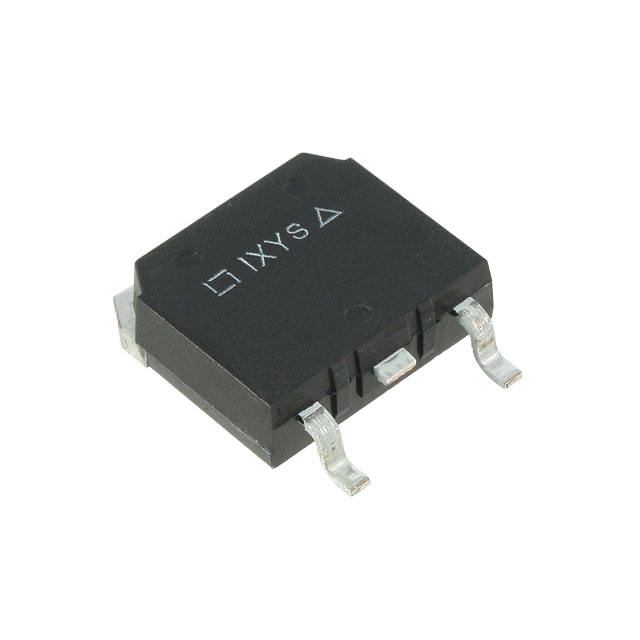

product image

IXBT42N170A Picture
See larger image
SeekIC No. : 00143064 Detail

IXBT42N170A: IGBT Transistors

IXBT42N170A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IXBT42N170A
Mfg:
Ixys
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Configuration : Single Collector- Emitter Voltage VCEO Max : 1700 V
Collector-Emitter Saturation Voltage : 6 V Maximum Gate Emitter Voltage : 20 V
Maximum Operating Temperature : + 150 C Package / Case : TO-268-3
Packaging : Tube

Description

Continuous Collector Current at 25 C :
Gate-Emitter Leakage Current :
Power Dissipation :
Maximum Gate Emitter Voltage : 20 V
Maximum Operating Temperature : + 150 C
Packaging : Tube
Configuration : Single
Collector- Emitter Voltage VCEO Max : 1700 V
Package / Case : TO-268-3
Collector-Emitter Saturation Voltage : 6 V


Features:

· High Blocking Voltage
· JEDEC TO-268 surface and JEDEC TO-247 AD
· Fast switching
· High current handling capability
· MOS Gate turn-on
   - drive simplicity
· Molding epoxies meet UL 94 V-0 flammability classification


Application

· AC motor speed control
· Uninterruptible power supplies (UPS)
· Switched-mode and resonant-mode power supplies
· Substitutes for high voltage MOSFETs


Parameters:

Technical/Catalog InformationIXBT42N170A
VendorIXYS
CategoryDiscrete Semiconductor Products
Input TypeStandard
Voltage - Collector Emitter Breakdown (Max)1700V
Current - Collector (Ic) (Max)42A
Vce(on) (Max) @ Vge, Ic6V @ 15V, 21A
Power - Max350W
Mounting TypeSurface Mount
Package / CaseTO-268
PackagingTube
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names IXBT42N170A
IXBT42N170A
IXBT42N170A ND
IXBT42N170A ND
IXBT42N170A
