ITC135P: Solid State Relays Integrated

ITC135P Data Sheet

Get Latest Price

Part Number:: ITC135P
Mfg:: Clare
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Product Details

Quick Details

Product Type :	PCB Mount	Load Voltage Rating :	350 A
Load Current Rating :	120 mA	Package / Case :	SOIC-16

Description

Mounting Style :
Control Voltage Range :
Contact Form :
Output Device :
Product Type : PCB Mount
Load Current Rating : 120 mA
Load Voltage Rating : 350 A
Package / Case : SOIC-16

Features:

• Small 16 Pin SOIC Package (PCMCIA Compatible)
• Board Space and Cost Savings
• 2mW Hookswitch Drive Power (Logic Compatible)
• No Moving Parts
• 3750V_RMS Input/Output Isolation
• FCC Compatible Part 68
• Full-Wave Bridge Rectifier
• Darlington Transistor for Electronic Inductor "Dry" Circuits
• Half Wave Current Detector for Ring Signal or Loop Current Detect
• Current Limiting and Tape & Reel Versions Available
• JEDEC Standard Pin Out
• Includes Zener Diodes

Application

• Data/Fax Modem
• Voice Mail Systems
• Telephone Sets
• Computer Telephony Integration
• Cable TV Modems

Pinout

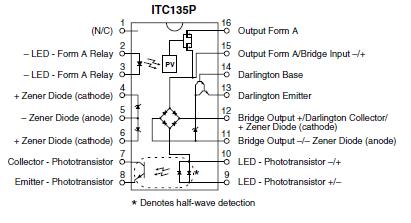

Connection Diagram

Specifications

Parameter	Min	Typ	Max	Units
Total Package Dissipation	-	-	1¹	W
Isolation Voltage		-
Input to Output	3750	-	-	V_RMS
Operational Temperature	-40	-	+85
Storage Temperature	-40	-	+125
Soldering Temperature (10 Seconds Max.)	-	-	+220

¹ Above 25° derate linerity 8.33mw/°C
Total Power Dissipation (PD):
P_D=P_HOOKSWITCH + P_BRIDGE+ P_DARLINGTON + P_LED
P_D=(R_DS(on)) (I²_L) + 2(V_F)(I_L) + (V_CE)(I_L) + (V_LED)(I_F)
WHERE:
R_DS(on) = Maximum realy on resistance
I_L = Maximum loop current
V_F= Maximum diode forward voltage
V_CE= Maximum voltage collector to emitter
V_LED = Maximum LED forward voltage
I_F= Maximum LED current

Absolute Maximum Ratings are stress ratings. Stresses in excess of these ratings can cause permanent damage to the device. Functional operation of the device at these or any other conditions beyond those indicated in the operational sections of this data sheet is not implied. Exposure of the device to the absolute maximum ratings for an extended period may degrade the device and effect its reliability.

Description

The Integrated Telecom Circuit ITC135P combines a 1-Form-A solid state relay, bridge rectifier, Darlington transistor, optocoupler and zener diodes into one 16 pin SOIC package, consolidating designs and reducing component count in telecom applications. The ITC135P's optocoupler provides half wave ring detection.

Parameters:

Technical/Catalog Information	ITC135P
Vendor	Clare
Category	ICs, Integrated Circuits, Semiconductors
Application	Telecommunication
Type	Telecom Circuit
Mounting Type	Surface (SMD, SMT)
Package Name	16-SOIC
Supply Voltage	3.50 V [Typ]
Packaging	Bulk
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	ITC135P ITC135P
