Product Details

Description



Features:

` HIGH SURGE CAPABILITY TRANSIL ARRAY
  IPP = 40 A 8/20s
` UP TO 5 BIDIRECTIONAL TRANSIL FUNCTIONS
` BREAKDOWNVOLTAGEAND MAXIMUMDIFFERENTIAL VOLTAGE BETWEEN TWO INPUT PINS :
   ITA6V5 = 6.5 V
   ITA10 = 10 V
   ITA18 = 18 V
   ITA25 = 25 V
` LOWCLAMPINGFACTOR(VCL / VBR) AT HIGH CURRENT LEVEL
` LOW LEAKAGECURRENT
` LOW INPUT CAPACITANCE


Pinout

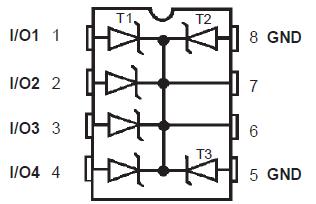

Connection Diagram


Specifications

Symbol Parameter
Value
Unit
IPP Peak pulse current for 8/20 sexponential pulse Seenote
40
A
I2t Wire I2 t value Seenote
0.6
A2S
Tstg
Tj		 Storage and Junction Temperature Range
- 55 to + 150
125

Note :
For surges greater than the maximum value specified, the input/output will present first a short circuit to the common bus line and after an open circuit caused by the wire.


Description

This is a specific transil array ITA10C1 for RS232, RS423 interface protection developed in monolithic chip form in order to provide a high surge capabilityand a low clamping voltage.
