ISO809

Features: ` 100kHz SAMPLING RATE` 1500Vrms ISOLATION CONTINUOUS` 10S CONVERSION TIME` 16-BIT SERIA` OUTPUT` SINGLE +5V SUPPLY` 28-PIN 0.6 PLASTIC DIPApplication·INDUSTRIAL PROCESS CONTROL·PC-BASED DATA ACQUISITION TEST EQUIPMENTPinoutSpecificationsAnalog Inputs: R1IN ................................

product image

ISO809 Picture
See larger image
SeekIC No. : 004380859 Detail

ISO809: Features: ` 100kHz SAMPLING RATE` 1500Vrms ISOLATION CONTINUOUS` 10S CONVERSION TIME` 16-BIT SERIA` OUTPUT` SINGLE +5V SUPPLY` 28-PIN 0.6 PLASTIC DIPApplication·INDUSTRIAL PROCESS CONTROL·PC-BASED ...

ISO809 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ISO809
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` 100kHz SAMPLING RATE
` 1500Vrms ISOLATION CONTINUOUS
` 10S CONVERSION TIME
` 16-BIT SERIA` OUTPUT
` SINGLE +5V SUPPLY
` 28-PIN 0.6" PLASTIC DIP


Application

·INDUSTRIAL PROCESS CONTROL
·PC-BASED DATA ACQUISITION TEST EQUIPMENT


Pinout

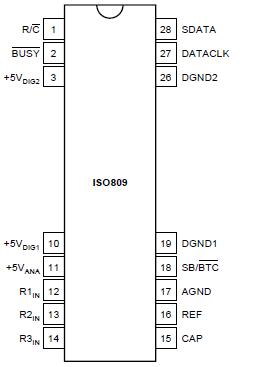

Connection Diagram


Specifications

Analog Inputs: R1IN ........................................................................... ±25V
                        R2IN ........................................................................... ±25V
                        R3IN ........................................................................... ±25V
                        CAP .................................... ....VANA +0.3V to AGND2 0.3V
                        REF ............................................. Indefinite Short to AGND,
                                                                             Momentary Short to VANA
Ground Voltage Differences: DGND and AGND .................................. ±0.3V
                                             DGND, AGND, and GNDISO ............. 1563Vrms
VANA ....................................................................................................... 7V
VDIG to VANA ..................................................................................... +0.3V
VDIG ....................................................................................................... 7V
Digital Inputs ...............................................................0.3V to VDIG +0.3V
Maximum Junction Temperature ..................................................... +165°C
Internal Power Dissipation ............................................................. 700mW
Lead Temperature (soldering, 10s) ................................................ +300°C


Description

The ISO809 is a low-power isolated sampling ADC using state-of-the-art CMOS structures and high voltage capacitors. The ISO809 contains a complete 16-bit capacitor based SAR, ADC with S/H, clock, reference, mP interface, serial out and galvanic isolation.

Laser-trimmed scaling resistors provide standard industrial input ranges including ±10V, ±5V, 0-5V, 0-4V. They are available in 28-pin 0.6" wide plastic DIP and are specified over the industrial temperature range of 40°C to +85°C.
