Product Details

Description



Features:

`1500Vrms ISOLATION CONTINUOUS
`25S CONVERSION TIME
`12-BIT SERIAL OUTPUT
`SINGLE +5V SUPPLY
`28-PIN 0.6" PLASTIC DIP


Application

·INDUSTRIAL PROCESS CONTROL
·PC-BASED DATA ACQUISITION TEST EQUIPMENT


Pinout

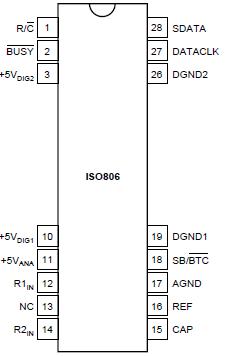

Connection Diagram


Specifications

Analog Inputs: R1IN ........................................................................... ±25V
                        R2IN ........................................................................... ±25V
                        CAP ........................................ VANA +0.3V to AGND2 0.3V
                        REF .......................................... Indefinite Short to AGND2,
                                                                            Momentary Short to VANA
Ground Voltage Differences: DGND and AGND1 ................................ ±0.3V
                                             DGND, AGND, and GNDISO ............. 1563Vrms
VANA ....................................................................................................... 7V
VDIG to VANA ..................................................................................... +0.3V
VDIG ....................................................................................................... 7V
Digital Inputs .............................................................. 0.3V to VDIG +0.3V
Maximum Junction Temperature ................................................... +165°C
Internal Power Dissipation ............................................................. 825mW
Lead Temperature (soldering, 10s) ................................................ +300°C


Description

The ISO806 is a low-power isolated sampling ADC using state-of-the-art CMOS structures and high voltage capacitors. The ISO806 contains a complete 12-bit capacitor based SAR, ADC with S/H, clock, reference, mP interface, serial out and galvanic isolation.

Laser-trimmed scaling resistors provide standard industrial input ranges including ±10V, ±5V, 0-5V, 0-4V. They are available in 28-pin 0.6" wide plastic DIP and are specified over the industrial temperature range of 40°C to +85°C.
