Product Details

Description



Features:

• High-speed access times:8, 10, 12 ns
• High-performance, low-power CMOS process
• Multiple center power and ground pins for greater noise immunity
• Easy memory expansion with CE and OE options
• CE power-down
• Fully static operation: no clock or refresh required
• TTL compatible inputs and outputs
• Single 3.3V power supply
• Packages available:
  32-pin 300-mil SOJ
  32-pin 400-mil SOJ
  32-pin TSOP (Type II)
  32-pin STSOP (Type I)
  36-pin BGA (8mmx10mm)

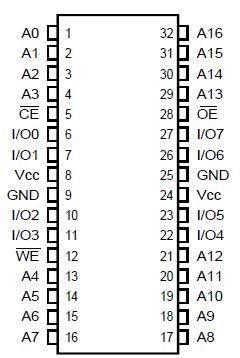

Pinout

Connection Diagram


Specifications

Symbol Parameter Value Unit
VTERM Terminal Voltage with Respect to GND 0.5 to Vcc + 0.5 V
TBIAS Temperature Under Bias 55 to +125
TSTG Storage Temperature 65 to +150
PT Power Dissipation 1.0 W

Notes:
1. Stress greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.


Description

The ISSI IS63LV1024L is a very high-speed, low power, 131,072-word by 8-bit CMOS static RAM in revolutionary pinout. The IS63LV1024L is fabricated using ISSI's high-performance CMOS technology. This highly reliable process coupled with innovative circuit design techniques, yields higher performance and low power consumption devices.

When CE is HIGH (deselected), the device assumes a standby mode at which the power dissipation can be reduced down to 250 W (typical) with CMOS input levels.

The IS63LV1024L operates from a single 3.3V power supply and all inputs are TTL-compatible.
