IS45S16100C1

Features: • Clock frequency: 143 MHz• Fully synchronous; all signals referenced to a positive clock edge• Two banks can be operated simultaneously and independently• Dual internal bank controlled by A11 (bank select)• Single 3.3V power supply• LVTTL interface...

product image

IS45S16100C1 Picture
See larger image
SeekIC No. : 004379073 Detail

IS45S16100C1: Features: • Clock frequency: 143 MHz• Fully synchronous; all signals referenced to a positive clock edge• Two banks can be operated simultaneously and independently• Dual int...

IS45S16100C1 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IS45S16100C1
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Clock frequency: 143 MHz
• Fully synchronous; all signals referenced to a positive clock edge
• Two banks can be operated simultaneously and independently
• Dual internal bank controlled by A11 (bank select)
• Single 3.3V power supply
• LVTTL interface
• Programmable burst length
(1, 2, 4, 8, full page)
• Programmable burst sequence: Sequential/Interleave
• 4096 refresh cycles every 64 ms
• Random column address every clock cycle
• Programmable CAS latency (2, 3 clocks)
• Burst read/write and burst read/single write operations capability
• Burst termination by burst stop and precharge command
• Byte controlled by LDQM and UDQM
• Automotive Temperature Range Option A: 0oC to +70oC Option A1: -40oC to +85oC
• Packages: 400-mil 50-pin TSOP-II, 60-ball fBGA
• Lead-free package option


Pinout

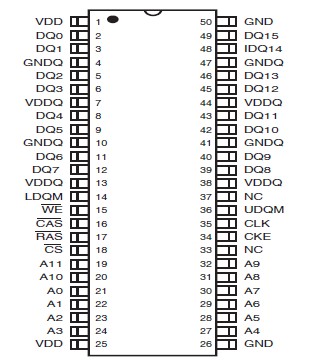

Connection Diagram


Specifications

Symbol
Parameters
Rating
Unit
V DD MAX
V DDQ
M AX
VIN
VOUT
P D MAX
ICS
TOPR
TSTG
Maximum Supply Voltage
Maximum Supply Voltage for Output Buffer
Input Voltage
Output Voltage
Allowable Power Dissipation
Output Shorted Current
Operating Temperature A A1
Storage Temperature
1.0 to +4.6
1.0 to +4.6
1.0 to +4.6
1.0 to +4.6
1
50
0 to +70
-40 to +85
55 to +150
V
V
V
V
W
mA
°C
°C
°C

Notes:
1. Stress greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.




Description

ISSI's 16Mb Synchronous DRAM IS45S16100C1 is organized as a 524,288-word x 16-bit x 2-bank for improved performance. The synchronous DRAMs achieve high-speed data transfer using pipeline architecture. All inputs and outputs signals refer to the rising edge of the clock input.
