Product Details

Description

Features:

·Single 3.3V ±0.3V power supply
·Max. Clock frequency: -6:166MHz<3-3-3> -7:143MHz<3-3-3> -75:133MHz<3-3-3>
·Fully synchronous operation referenced to clock rising edge
·4-bank operation controlled by BA0,BA1(Bank Address)
·/CAS latency-2/3 (programmable)
·Burst length-1/2/4/8/FP (programmable)
·Burst type-Sequential and interleave burst (programmable)
·Byte Control-DQML and DQMU (IS42S16160A)
·Random column access
·Auto precharge / All bank precharge controlled by A10
·Auto and self refresh
·8192 refresh cycles /64ms(4 banks concurrent refresh)
·LVTTL Interface
·Row address A0-12 /Column address A0-9(x8) / A0-8(x16)
·Package: 400-mil, 54-pin Thin Small Outline (TSOP II) with 0.8mm lead pitch
·Lead-free available

Pinout

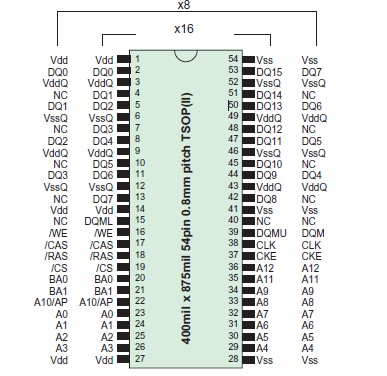

Connection Diagram

Description

IS42S83200A is a synchronous 256Mb SDRAM and is organized as 4-bank x 8,388,608-word x 8-bit; and IS42S16160A is organized as 4-bank x 4,194,304-word x 16-bit. All inputs and outputs are referenced to the rising edge of CLK.

IS42S83200A and IS42S16160A achieve very high speed clock rates up to 166MHz, and are suitable for main memories or graphic memories in computer systems.
