IS42G32256

Features: • 256,144 words x 32 bits x 2-bank organization• All inputs are sampled at the positive going edge of the system clock• Dual internal bank control• Single 3.3V ± 3V power supply• Programmable mode register Burst length (1, 2, 4, 8, and full page) CAS laten...

product image

IS42G32256 Picture
See larger image
SeekIC No. : 004379026 Detail

IS42G32256: Features: • 256,144 words x 32 bits x 2-bank organization• All inputs are sampled at the positive going edge of the system clock• Dual internal bank control• Single 3.3V ± 3V...

IS42G32256 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IS42G32256
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 256,144 words x 32 bits x 2-bank organization
• All inputs are sampled at the positive going edge of the system clock
• Dual internal bank control
• Single 3.3V ± 3V power supply
• Programmable mode register
  Burst length (1, 2, 4, 8, and full page)
  CAS latency (2 and 3)
  Burst type: Sequential and Interleave
• Burst Read single-bit Write Operation
• Refresh capability
  Auto, self-refresh
• 2,048 refresh cycles/32 ms
• LVTTL compatible inputs and outputs
•100-pin PQFP
   (14mm x 20mm)

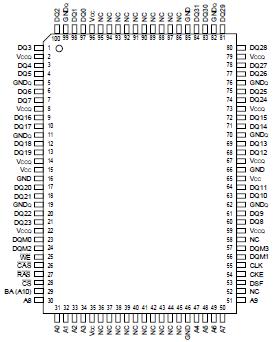

Pinout

Connection Diagram


Specifications

Symbol Parameter Min. Typ.
Max.
Unit
VCC,VCCQ Supply Voltage 3.0 3.3
3.0
V
VIH Input High Voltage 2.0 -
Vcc + 0.3
V
VIL Input Low Voltage -3.0 -
+0.8
V

1. Stress greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.
2. All voltages are referenced to GND.
3. VIH (max) = 5.5V for pulse width5 ns.
4. VIL (min) = 1.5V for pulse width5 ns.


Description

The ISSI IS42G32256 is a high-speed 16-Mbit CMOS Synchronous Graphics RAM organized as 256K words x 32 bits x 2 banks. With SGRAM, all input and output signals are synchronized with the rising edge of the system clock. Programmable Mode Register and Special Registers provide a choice of Read or Write burst lengths of 1, 2, 4, or 8 locations or a Full Page with burst termination options. The SGRAM performance is enhanced with the Write-per-bit (WPB) and eight columns of Block Write functions.

The IS42G32256 is ideal for high-performance, highbandwidth applications including workstation graphics, set top box, games, and PC-2D/3D graphic applications.
