IRLU8743PBF

MOSFET MOSFT 30V 160A 39nC 3.1mOhm Qg log lvl

product image

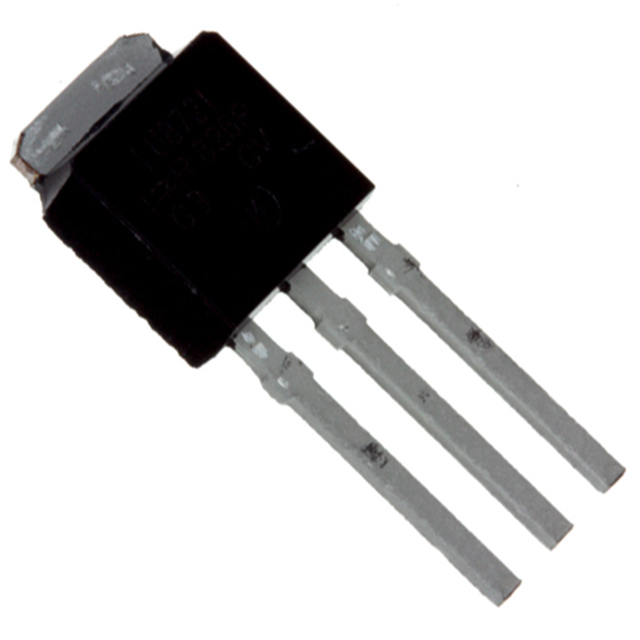

IRLU8743PBF Picture
See larger image
SeekIC No. : 00147905 Detail

IRLU8743PBF: MOSFET MOSFT 30V 160A 39nC 3.1mOhm Qg log lvl

IRLU8743PBF Data Sheet

floor Price/Ceiling Price

US $ .38~.95 / Piece | Get Latest Price
Part Number:
IRLU8743PBF
Mfg:
International Rectifier
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~25
  • 25~100
  • 100~250
  • Unit Price
  • $.95
  • $.59
  • $.4
  • $.38
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/2/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Transistor Polarity : N-Channel Drain-Source Breakdown Voltage : 30 V
Gate-Source Breakdown Voltage : 20 V Continuous Drain Current : 160 A
Resistance Drain-Source RDS (on) : 3.9 mOhms Mounting Style : Through Hole
Package / Case : IPAK Packaging : Tube

Description

Configuration :
Maximum Operating Temperature :
Transistor Polarity : N-Channel
Drain-Source Breakdown Voltage : 30 V
Mounting Style : Through Hole
Packaging : Tube
Gate-Source Breakdown Voltage : 20 V
Resistance Drain-Source RDS (on) : 3.9 mOhms
Package / Case : IPAK
Continuous Drain Current : 160 A


Application

 High Frequency Synchronous Buck Converters for Computer Processor Power
High Frequency Isolated DC-DC Converters with Synchronous Rectification for Telecom and Industrial Use
Lead-Free




Specifications

Symbol Parameter
Max.
Units
VDS Drain-Source Voltage
30
V
VGS Gate-to-Source Voltage
±20
ID @ TC = 25 Continuous Drain Current, VGS @ 10V
160
A
ID @ TC= 100 Continuous Drain Current, VGS @ 10V
113
IDM Pulsed Drain Current
640
PD @TC = 25 Maximum Power Dissipation
135
W
PD @TC = 100 Maximum Power Dissipation
68
  Linear Derating Factor
0.90
W/
TJ
TSTG		 Operating Junction and
Storage Temperature Range
-55 to + 175
  Soldering Temperature, for 10 seconds 300 (1.6mm from case)



Parameters:

Technical/Catalog InformationIRLU8743PBF
VendorInternational Rectifier
CategoryDiscrete Semiconductor Products
Mounting TypeThrough Hole
FET PolarityN-Channel
Drain to Source Voltage (Vdss)30V
Current - Continuous Drain (Id) @ 25° C160A
Rds On (Max) @ Id, Vgs3.1 mOhm @ 25A, 10V
Input Capacitance (Ciss) @ Vds 4880pF @ 15V
Power - Max135W
PackagingTube
Gate Charge (Qg) @ Vgs59nC @ 4.5V
Package / CaseIPak, TO-251, DPak, VPak (3 straight leads + tab)
FET FeatureLogic Level Gate
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names IRLU8743PBF
IRLU8743PBF
