IRLL014PBF

MOSFET N-Chan 60V 2.7 Amp

product image

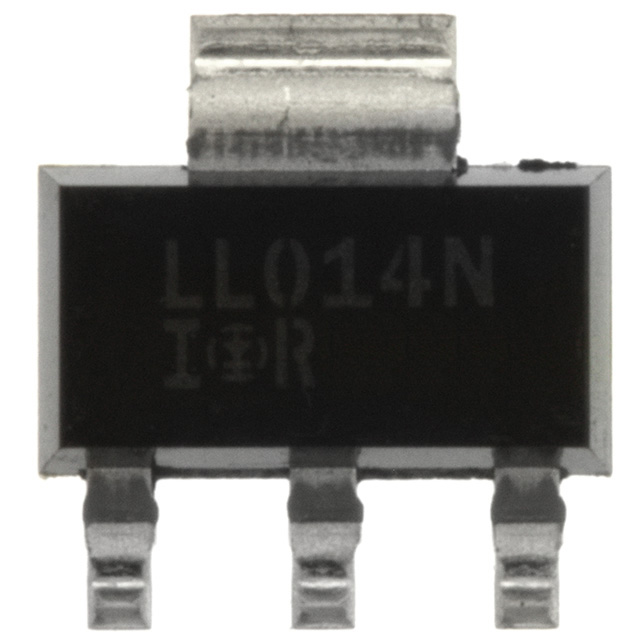

IRLL014PBF Picture
SeekIC No. : 00149305 Detail

IRLL014PBF: MOSFET N-Chan 60V 2.7 Amp

floor Price/Ceiling Price

US $ .25~.43 / Piece | Get Latest Price
Part Number:
IRLL014PBF
Mfg:
Vishay/Siliconix
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~10
  • 10~100
  • 100~250
  • Unit Price
  • $.43
  • $.33
  • $.29
  • $.25
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Transistor Polarity : N-Channel Drain-Source Breakdown Voltage : 60 V
Gate-Source Breakdown Voltage : +/- 10 V Continuous Drain Current : 2.7 A
Resistance Drain-Source RDS (on) : 200 mOhms at 5 V Configuration : Single Dual Drain
Maximum Operating Temperature : + 150 C Mounting Style : SMD/SMT
Package / Case : SOT-223 Packaging : Tube

Description

Transistor Polarity : N-Channel
Mounting Style : SMD/SMT
Maximum Operating Temperature : + 150 C
Packaging : Tube
Drain-Source Breakdown Voltage : 60 V
Gate-Source Breakdown Voltage : +/- 10 V
Package / Case : SOT-223
Continuous Drain Current : 2.7 A
Configuration : Single Dual Drain
Resistance Drain-Source RDS (on) : 200 mOhms at 5 V


Features:

· Surface Mount
· Available in Tape & Reel
· Dynamic dv/dt Rating
·Logic-Level Gate Drive
· RDS(on) Specified at VGS=4V & 5V
· Fast Switching
· Ease of Paralleling
·Lead-Free



Specifications

Parameter
Max. Units
ID @ Tc = 25
Continuous Drain Current, VGS @ 10 V 2.7 A
ID @ Tc = 100
Continuous Drain Current, VGS @ 10 V 1.7
IDM
Pulsed Drain Current 22
PD @Tc = 25
Power Dissipation 3.1 W
PD @TA = 25
Power Dissipation (PCB Mount)** 2.0
Linear Derating Factor 0.025 W/
Linear Derating Factor (PCB Mount)** 0.017
VGS
Gate-to-Source Voltage -/+10 V
EAS
Single Pulse Avalanche Energy 100 mJ
IAR
Avalanche Current 2.7 A
EAR
Repetitive Avalanche Energy 0.31 mJ
dv/dt
Peak Diode Recovery dv/dt 4.5 V/ns
TJ, TSTG
Junction and Storage Temperature Range -55 to + 150
Soldewring Temperature, for 10 seconds 300 (1.6mm from case)



Description

Third Generation HEXFETs from International Rectifier IRLL014PbF provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness.

The SOT-223 package is designed for surface-mount using vapor phase, infra red, or wave soldering techniques. Its unique package design allows for easy automatic pick-andplace as with other SOT or SOIC packages but has the added advantage of improved thermal performance due to an enlarged tab for heatsinking. Power dissipation of grreater than 1.25W is possible in a typical surface mount application.
