IRGP20B120U-E

Features: • UltraFast Non Punch Through (NPT) Technology• 10 µs Short Circuit capability• Square RBSOA• Positive VCE(on) Temperature Coefficient• Extended lead TO-247 packageSpecifications Parameter Max. Units VCES Collector-to-Emitter Breakdown V...

product image

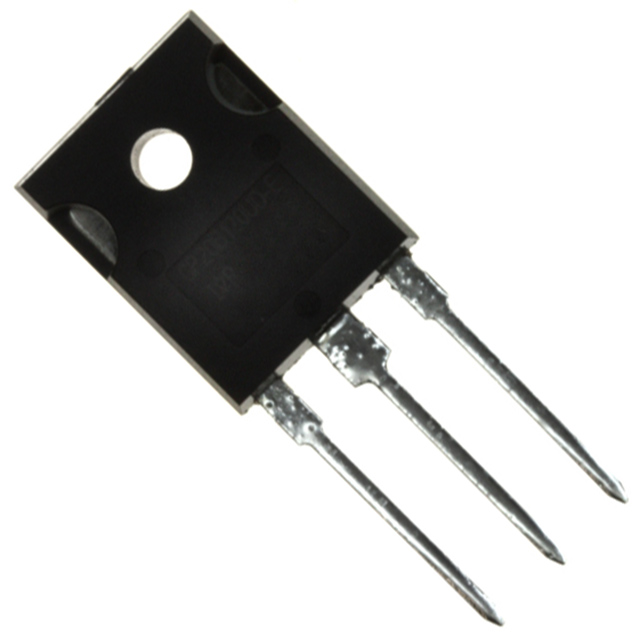

IRGP20B120U-E Picture
See larger image
SeekIC No. : 004377852 Detail

IRGP20B120U-E: Features: • UltraFast Non Punch Through (NPT) Technology• 10 µs Short Circuit capability• Square RBSOA• Positive VCE(on) Temperature Coefficient• Extended lead TO...

IRGP20B120U-E Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IRGP20B120U-E
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/13

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

•  UltraFast Non Punch Through (NPT)  Technology
• 10 µs Short  Circuit  capability
• Square  RBSOA
• Positive VCE(on) Temperature Coefficient
• Extended lead TO-247 package


Specifications

  Parameter
 Max. Units
VCES Collector-to-Emitter Breakdown Voltage 1200 V
I @ T= 25°C Continuous Collector Current (Fig.1) 40
I @ T= 100°C Continuous Collector Current (Fig.1) 20
ICM Pulsed Collector Current (Fig.3, Fig. CT.5) 120
ILM Clamped Inductive Load Current(Fig.4, Fig. CT.2) 120
VGE Gate-to-Emitter Voltage ± 20 V
EAS@ TC=25°C

CAvalanche Energy, single pulse

IC= 25A, VCC= 50V, RGE= 25ohm
L = 200µH (Fig. CT.6)

 65 mJ
DC @ T= 25°C CMaximum Power Dissipation (Fig.2) 300 W
PD @ TC= 100°C CMaximum Power Dissipation (Fig.2) 120
TJT
STG		 Operating Junction and Storage Temperature Range -55 to + 150 °C
  Soldering Temperature, for 10 seconds 300, (0.063 in. (1.6mm) from case)
  Mounting torque, 6-32 or M3 screw. 10 lbf•in (1.1N•m)



Description

 • Benchmark efficiency above 20KHz
 • Optimized for Welding, UPS, and Induction Heating applications
 • Rugged with UltraFast performance
 • Low EMI
 • Significantly Less Snubber required
 • Excellent Current sharing in Parallel operation
 • Longer leads for easier mounting
