IRG4BH20K-L

Series: -
Manufacturer: International Rectifier
IGBT Type: -
Input Type: Standard
Power - Max: 60W
Mounting Type: Through Hole
Packaging: Tube
Voltage - Collector Emitter Breakdown (Max): 1200V
Vce(on) (Max) @ Vge, Ic: 4.3V @ 15V, 5A
Current - Collector (Ic) (Max): 11A
Package / Case: TO-262-3 Long Leads, I²Pak, TO-262AA
Supplier Device Package: TO-262


Features:

* High short circuit rating optimized for motor control,
  t _sc =10s,  V _CC= 720V ,  T  _J= 125°C,
  V _GE = 15V
* Combines low conduction losses with high
  switching speed
* Latest generation design provides tighter parameter
  distribution and higher efficiency than previous
  generations
* Industry standard TO-262 package


Application

* As a Freewheeling Diode we recommend our
TM
 ultrafast, ultrasoft recovery diodes for
  HEXFRED
  minimum EMI / Noise  and switching  losses in the
  Diode  and IGBT
* Latest generation 4 IGBT's offer highest power
  density motor controls possible


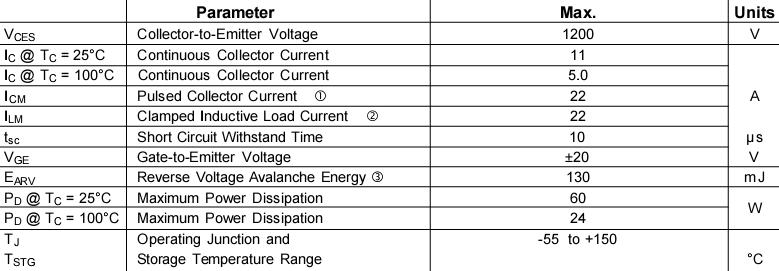

Specifications




Description




Parameters:

Technical/Catalog Information	IRG4BH20K-L
Vendor	International Rectifier
Category	Discrete Semiconductor Products
Input Type	Standard
Voltage - Collector Emitter Breakdown (Max)	1200V
Current - Collector (Ic) (Max)	11A
Vce(on) (Max) @ Vge, Ic	4.3V @ 15V, 5A
Power - Max	60W
Mounting Type	Through Hole
Package / Case	TO-262-3 (Straight Leads)
Packaging	Tube
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	IRG4BH20K L IRG4BH20KL
