IRG4BC30W-S: IGBT WARP 600V 23A D2PAK

IRG4BC30W-S Data Sheet

Get Latest Price

Part Number:: IRG4BC30W-S
Mfg:
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

IRG4BAC50S evaluate
Features: • Standard: Optimized for minimum saturation voltage and low operating frequencies...
IRG4BAC50U evaluate
Features: • UltraFast: Optimized for high operating frequencies 8-40kHz in hard switching, &...
IRG4BAC50W evaluate
Features: • Designed expressly for switch-mode power supply and PFC (power factor correction...

Product Details

Quick Details

Series:	-	Manufacturer:	International Rectifier
IGBT Type:	-	Frequency :	0.5 GHz to 2 GHz
Voltage - Collector Emitter Breakdown (Max):	600V	Vce(on) (Max) @ Vge, Ic:	2.7V @ 15V, 12A
Current - Collector (Ic) (Max):	23A	Power - Max:	100W
Input Type:	Standard	Mounting Type:	Surface Mount
Package / Case:	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB	Supplier Device Package:	D2PAK

Description

Series: -
Manufacturer: International Rectifier
IGBT Type: -
Voltage - Collector Emitter Breakdown (Max): 600V
Input Type: Standard
Mounting Type: Surface Mount
Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package: D2PAK
Vce(on) (Max) @ Vge, Ic: 2.7V @ 15V, 12A
Current - Collector (Ic) (Max): 23A
Power - Max: 100W
Packaging: Tube

Features:

* Designed expressly for Switch-Mode Power
Supply and PFC (power factor correction)
applications
* Industry-benchmark switching losses improve
efficiency of all power supply topologies
* 50% reduction of Eoff parameter
* Low IGBT conduction losses
* Latest-generation IGBT design and construction offers
tighter parameters distribution, exceptional reliability

Specifications

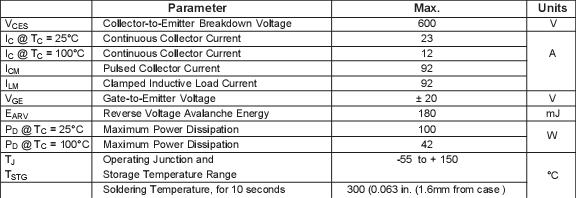

Connection Diagram

Parameters:

Technical/Catalog Information	IRG4BC30W-S
Vendor	International Rectifier
Category	Discrete Semiconductor Products
Input Type	Standard
Voltage - Collector Emitter Breakdown (Max)	600V
Current - Collector (Ic) (Max)	23A
Vce(on) (Max) @ Vge, Ic	2.7V @ 15V, 12A
Power - Max	100W
Mounting Type	Surface Mount
Package / Case	D²Pak, TO-263 (2 leads + tab)
Packaging	Tube
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	IRG4BC30W S IRG4BC30WS
