IRG4BC30S

IGBT STD 600V 34A TO-220AB

product image

IRG4BC30S Picture
See larger image
SeekIC No. : 003434298 Detail

IRG4BC30S: IGBT STD 600V 34A TO-220AB

IRG4BC30S Data Sheet

floor Price/Ceiling Price

US $ .98~.98 / Piece | Get Latest Price
Part Number:
IRG4BC30S
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 0~300
  • Unit Price
  • $.98
  • Processing time
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: - Manufacturer: International Rectifier
IGBT Type: - Frequency : 0.5 GHz to 2 GHz
Voltage - Collector Emitter Breakdown (Max): 600V Vce(on) (Max) @ Vge, Ic: 1.6V @ 15V, 18A
Current - Collector (Ic) (Max): 34A Power - Max: 100W
Input Type: Standard Mounting Type: Through Hole
Package / Case: TO-220-3 Supplier Device Package: TO-220AB

Description

Series: -
Manufacturer: International Rectifier
IGBT Type: -
Voltage - Collector Emitter Breakdown (Max): 600V
Input Type: Standard
Power - Max: 100W
Mounting Type: Through Hole
Packaging: Tube
Package / Case: TO-220-3
Supplier Device Package: TO-220AB
Vce(on) (Max) @ Vge, Ic: 1.6V @ 15V, 18A
Current - Collector (Ic) (Max): 34A


Features:

* Standard:  optimized for minimum saturation
   voltage and low operating frequencies ( < 1kHz)
* Generation 4 IGBT design provides tighter
  parameter distribution and higher efficiency than
  Generation 3
* Industry standard TO-220AB package

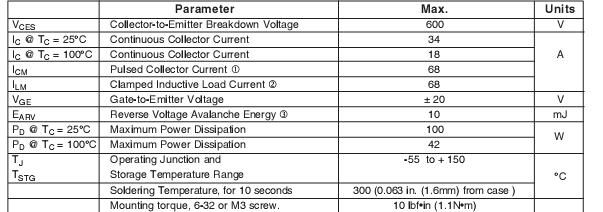

Specifications

Connection Diagram
