Features:

• Low power consumption : 110 mW (TYP.) at 20 MHz mode
• Wide AGC range : 0 to 36 dB (Gain step : 0.094 dB/step)
• High speed sample-and-hold circuits :
    pulse width 10 ns (MIN.)
• Power save operation :
   84 mW (TYP.) at 15 MHz mode
• Standby mode : less than 0.3 mW
• Built-in serial interface
• 10-bit ADC operating up to 20 MHz
    Non-linearity
     DNL : 0.6 LSB (TYP.)
     INL : 1.5 LSB (TYP.)
• Maximum input level of CCD signals : 1.1 Vp-p
• Accepts a direct signal input to ADC or AGC (input level : 1 Vp-p (TYP.))
• Single +3 V power supply
• Package :
   48-pin QFP (QFP048-P-0707) 0.5 mm pin-pitch


Pinout

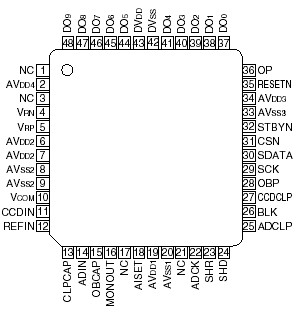

Connection Diagram


Specifications

PARAMETER SYMBOL CONDITIONS RATING UNIT NOTE
Power supply voltage AVDD   0.3 to +4.5 V
DVDD   0.3 to +4.5 or AVDD + 0.3 V 1
Voltage difference
 VDLT DVDD AVDD 0.3 V
Input current IIN Except PS ±10 mA

Analog input voltage VINA   AVSS 0.3 to AVDD + 0.3 V
Digital input voltage
(Input pin)		 VINL   AVSS 0.3 to AVDD + 0.3 V
Digital input voltage
(Output pin)		 VONL   AVSS 0.3 to AVDD + 0.3 V 2
Operating temperature TOPR   30 to +85
Storage temperature TSTG   40 to +125

NOTES :
1. The higher voltage of 4.5 V and AVDD + 0.3 V specifies maximum value of DVDD absolute maximum rating.
2. The VONL limits the excess voltage applied to digital output pins.


Description

The IR3Y48M is a CMOS single-chip signal processing IC for CCD area sensors which includes correlated double sampling circuit (CDS), clamp circuit, automatic gain control amplifier (AGC), reference voltage generator, black level detection circuit, 20 MHz 10-bit analog-to-digital converter (ADC), timing circuit for internally required pulses, and serial interface for internal circuits.
