IR3Y38M

Features: • Low power consumption : 315 mW (TYP.)• Wide AGC range : 12 to 43.5 dB• High speed sample-and-hold circuits : pulse width 12 ns (MIN.)• Built-in standby mode for power saving applications• Built-in serial interface to control the AGC gain, maximum gain and ...

product image

IR3Y38M Picture
See larger image
SeekIC No. : 004376268 Detail

IR3Y38M: Features: • Low power consumption : 315 mW (TYP.)• Wide AGC range : 12 to 43.5 dB• High speed sample-and-hold circuits : pulse width 12 ns (MIN.)• Built-in standby mode for p...

IR3Y38M Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IR3Y38M
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/13

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Low power consumption : 315 mW (TYP.)
• Wide AGC range : 12 to 43.5 dB
• High speed sample-and-hold circuits : pulse width 12 ns (MIN.)
• Built-in standby mode for power saving applications
• Built-in serial interface to control the AGC gain, maximum gain and offset adjustment
• 10-bit ADC operating up to 18 MHz
• Digital interface for operating 3.3 V logic ICs
• Single +5 V power supply
• Package :
   48-pin QFP (QFP048-P-0707) 0.5 mm pin-pitch

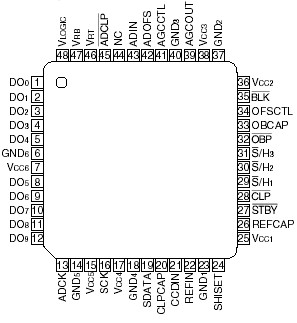

Pinout

Connection Diagram


Specifications

PARAMETER SYMBOL CONDITIONS RATING UNIT
Supply voltage VCC1-VCC6   7 V
Input voltage VIN   0.3 to VCC + 0.3 V
Power consumption PD TA +25 570 mW
PD derating ratio   TA > +25 4.5 mW/
Operating temperature
 TOPR
   30 to +70
Storage temperature TSTG   55 to +150



Description

The IR3Y38M is a bipolar single-chip signal processing IC for CCD area sensors which includes correlated double sampling circuit (CDS), clamp circuit, automatic gain control amplifier (AGC), reference voltage generator, black level detection circuit, 10-bit analog-to-digital converter (ADC), and serial interface for internal circuits.
