IP4220CZ6

Features: • ESD IEC 61000-4-2 level 4, ± 8kV contact discharge compliant protection• Four ultra-low input capacitance (1 pF typ.) ESD rail-to-rail protection diodes• Low voltage clamping due to integrated Zener diode• Small 6 lead SO6 (SOT457) packageApplication• Cell...

product image

IP4220CZ6 Picture
See larger image
SeekIC No. : 004375650 Detail

IP4220CZ6: Features: • ESD IEC 61000-4-2 level 4, ± 8kV contact discharge compliant protection• Four ultra-low input capacitance (1 pF typ.) ESD rail-to-rail protection diodes• Low voltage cl...

IP4220CZ6 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IP4220CZ6
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/20

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• ESD IEC 61000-4-2 level 4, ± 8kV contact discharge compliant protection
• Four ultra-low input capacitance (1 pF typ.) ESD rail-to-rail protection diodes
• Low voltage clamping due to integrated Zener diode
• Small 6 lead SO6 (SOT457) package


Application

• Cellular and PCS mobile handsets
• PC-/Notebook USB2.0/IEEE1394 ports
• DVI interfaces
• Cordless telephones
• Wireless data (WAN/LAN) systems
• PDAs


Pinout

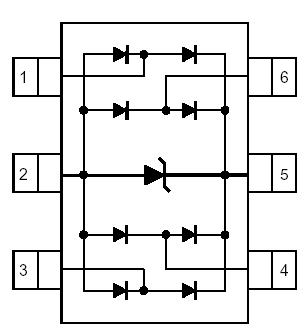

Connection Diagram


Specifications

VI/O DC input voltage range ....................................................................0 to +5.5 V
ESD Electrostatic Discharge, all pins IEC 61000-4-2, Level 4, Contact.......-8 to +8kV
Tstg Device storage temperature range ............................................-55 to +125 °C




Description

The IP4220CZ6 is designed to protect I/Os being sensitive concerning capacitive load, such as USB 2.0, Ethernet, DVI etc. from destruction by Electro Static Discharges (ESD).

Therefore, the IP4220CZ6 incorporates four pairs of ultra-low capacity rail-to-rail diodes plus an additional Zener diode to provide protection to downstream signal and supply components from Electrostatic Discharge (ESD) voltages as high as ±8 kV contact discharge.

Due to the rail-to-rail diodes being connected to the Zener diode, the protection is working independent form the availability of a supply voltage. The IP4220CZ6 is fabricated using thin film-on-silicon technology and integrates 4 ultra-low capacityrail-to-rail ESD protection diodes in a miniature 6-lead SOT457 package.
