IP175ALF

Features: 5 port 10/100 Ethernet switch with built in transceivers and memoryBuild in SSRAM for frame bufferBuilt in storage of 1K MAC addressSupport flow control Support IEEE802.3x for flow control for full duplex mode operation Support backpressure for flow control for half duplex mode operati...

product image

IP175ALF Picture
SeekIC No. : 004375583 Detail

IP175ALF: Features: 5 port 10/100 Ethernet switch with built in transceivers and memoryBuild in SSRAM for frame bufferBuilt in storage of 1K MAC addressSupport flow control Support IEEE802.3x for flow contro...

floor Price/Ceiling Price

Part Number:
IP175ALF
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/20

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

5 port 10/100 Ethernet switch with built in transceivers and memory
Build in SSRAM for frame buffer
Built in storage of 1K MAC address
Support flow control
  Support IEEE802.3x for flow control for full duplex mode operation
  Support backpressure for flow control for half duplex mode operation
5 port switching fabric
  Support two-level hashing algorithm to solve MAC address collision
  Support MAC address aging
  Store and forward mode
  Broadcast storm protection
  Full line speed capability of 148800 (14880) packets/sec for 100M (10M)
  Support 1536 byte data transfer for VLAN packet traffic
  Port base VLAN
  Port base CoS configuration
Integrate 5 ports transceiver
  Each port can be auto negotiable or forced 10M/100M, full/half duplex
  Each port can be configured as 100BaseFX
  Automatic MDI/MDI-X configuration
Support two MII, one SMI and extended MII registers for router application
Built in regulator for 3.3v to 2.15v
LED status of Link, activity, Full/half duplex, speed, and power on diagnostic function
Initial parameter setting by pin or EEPROM (24LC01) configuration
Utilize single clock source (25Mhz)
0.25u technology
Support Lead Free package (Please refer to the Order Information)



Pinout

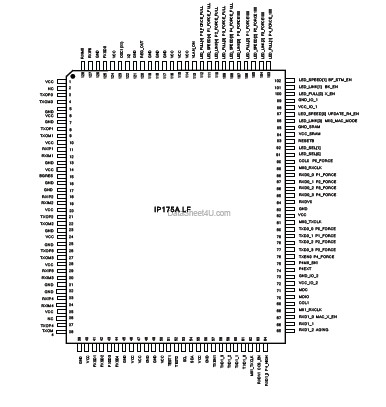

  Connection Diagram


Description

IP175ALF is a low cost 10/100 Ethernet single chip switch. It integrates a 5-port switch controller, SSRAM, and 5 10/100 Ethernet transceivers.

Each of the transceivers complies with the IEEE802.3, IEEE802.3u, and IEEE802.3x specifications. The transceivers of the IP175ALF are designed in DSP approach with 0.25um technology; they have high noise immunity and robust performance. IP175A LF operates in store and forward mode. It supports flow control, auto MDI/MDI-X, CoS, port base VLAN, and LED functions, etc. Each port can be configured to auto-negotiation or forced 10M/100M, full/half duplex, and it is also able to configure to 100BaseFX transmission mode. Using an EEPROM or pull up/down resistors of the IP175ALF on specified pins can configure the desired options. IP175A LF does not support "forced 10M half mode".

IP175A LF supports two MII ports for router application, which supports 4 LAN ports and one WAN port. MII0 is for LAN traffic and MII1 is for WAN traffic and no external PHY is needed. Both MII can work in PHY mode and interface to the external MAC in this application. The external MAC can monitor or configure IP175A LF by accessing MII registers through SMI.

MII0 of the IP175ALF also can be configured to be MAC mode. It is used to interface an external PHY to work as a 4+1 switch.
