Features: ` DESIGNED FOR LOW COST
` HIGH GAIN ACCURACY: G = 5, 0.07%, 2ppm/
` GAIN SET WITH EXT. RESISTORS FOR > 5V/V
` HIGH CMRR: 73dB DC, 50dB at 45kHz
` LOW BIAS CURRENT: 0.5pA
` BANDWIDTH, SLEW RATE: 2.0MHz, 5V/s
` RAIL-TO-RAIL OUTPUT SWING: (V+) 0.02V
` WIDE TEMPERATURE RANGE: 55 to +125
` LOW QUIESCENT CURRENT: 490A max/chan
` SHUT DOWN: 0.01A
` MSOP-8 SINGLE AND TSSOP-14 DUAL PACKAGESApplication· INDUSTRIAL SENSOR AMPLIFIERS: Bridge, RTD, Thermocouple, Position
· PHYSIOLOGICAL AMPLIFIERS: ECG, EEG, EMG
· A/D CONVERTER SIGNAL CONDITIONING
· DIFFERENTIAL LINE RECEIVERS WITH GAIN
· FIELD UTILITY METERS
· PCMCIA CARDS
· AUDIO AMPLIFIERS
· COMMUNICATION SYSTEMS
· TEST EQUIPMENT

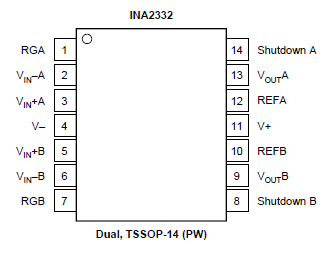

· AUTOMOTIVE INSTRUMENTATIONPinout
SpecificationsSupply Voltage, V+ to V .................................................................... 7.5V
Signal Input Terminals, Voltage(2) ................... (V) 0.5V to (V+) + 0.5V
Current(2) ..................................................... 10mA
Output Short-Circuit(3) .............................................................. Continuous
Operating Temperature ..................................................... 55 to +125
Storage Temperature ........................................................ 65 to +150
Junction Temperature .......................................................................... 150
Lead Temperature (soldering, 10s) ..................................................... 300
NOTES: (1) Stresses above these ratings may cause permanent damage. Exposure to absolute maximum conditions for extended periods may degrade device reliability. (2) Input terminals are diode-clamped to the power-supply rails. Input signals that can swing more than 0.5V beyond the supply rails should be current limited to 10mA or less. (3) Short-circuit to ground, one amplifier per package
DescriptionThe INA2332 are rail-to-rail output, low-power CMOS instrumentation amplifiers that offer wide range, singlesupply, and bipolar-supply operation. Using a special manufacturing flow, the IA332 family provides the lowest cost available, while still achieving low-noise amplification of differential signals with low quiescent current of 415A (dropping to 0.01A when shutdown). Returning to normal operation within microseconds, this INA can be used for battery or multichannel applications.
Configured internally in a gain of 5V/V, the INA332 offers flexibility in higher gains by choosing external resistors.
The INA2332 rejects line noise and its harmonics because common-mode error remains low even at higher frequencies. High bandwidth and slew rate make the INA332 ideal for directly driving sampling Analog-to-Digital (A/D) converters as well as general-purpose applications.
With high precision, low cost, and small packages, the INA2332 outperforms discrete designs.
Additionally, because they are specified for wide temperature range of 55 to +125 and operating range of 65 to +150, the INA331 family can be used in demanding industrial and automotive environments.
