INA2134

Features: `SINGLE AND DUAL VERSIONS`LOW DISTORTION: 0.0005% at f = 1kHz`HIGH SLEW RATE: 14V/s`FAST SETTLING TIME: 3s to 0.01%`WIDE SUPPLY RANGE: ±4V to ±18V`LOW QUIESCENT CURRENT: 2.9mA max`HIGH CMRR: 90dB`FIXED GAIN = 0dB (1V/V)`PACKAGES-SINGLE: 8-PIN DIP, SO-8 DUAL: 14-PIN DIP, SO-14Application·...

product image

INA2134 Picture
See larger image
SeekIC No. : 004375419 Detail

INA2134: Features: `SINGLE AND DUAL VERSIONS`LOW DISTORTION: 0.0005% at f = 1kHz`HIGH SLEW RATE: 14V/s`FAST SETTLING TIME: 3s to 0.01%`WIDE SUPPLY RANGE: ±4V to ±18V`LOW QUIESCENT CURRENT: 2.9mA max`HIGH CMR...

INA2134 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
INA2134
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`SINGLE AND DUAL VERSIONS
`LOW DISTORTION: 0.0005% at f = 1kHz
`HIGH SLEW RATE: 14V/s
`FAST SETTLING TIME: 3s to 0.01%
`WIDE SUPPLY RANGE: ±4V to ±18V
`LOW QUIESCENT CURRENT: 2.9mA max
`HIGH CMRR: 90dB
`FIXED GAIN = 0dB (1V/V)
`PACKAGES-SINGLE: 8-PIN DIP, SO-8
                      DUAL: 14-PIN DIP, SO-14


Application

·AUDIO DIFFERENTIAL LINE RECEIVER
·SUMMING AMPLIFIER
·UNITY-GAIN INVERTING AMPLIFIER
·PSUEDOGROUND GENERATOR
·INSTRUMENTATION BUILDING BLOCK
·CURRENT SHUNT MONITOR
·VOLTAGE-CONTROLLED CURRENT SOURCE
·GROUND LOOP ELIMINATOR


Pinout

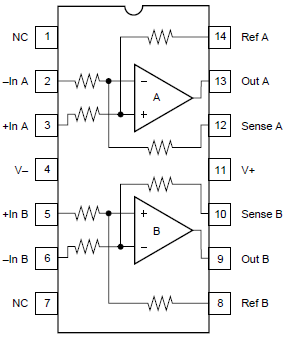

Connection Diagram

Connection Diagram






Specifications

Supply Voltage, V+ to V .................................................................... 40V
Input Voltage Range .......................................................................... ±80V
Output Short-Circuit (to ground)(2) ........................................... Continuous
Operating Temperature ................................................. 55 to +125
Storage Temperature ..................................................... 55 to +125
Junction Temperature .................................................................... +150
Lead Temperature (soldering, 10s) ............................................... +300

NOTE: (1) Stresses above these ratings may cause permanent damage.
           (2) One channel per package.


Description

The INA2134 are differential line receivers
consisting of high performance op amps with onchip precision resistors. They are fully specified for high performance audio applications and have excellent ac specifications, including low distortion (0.0005% at 1kHz) and high slew rate (14V/s), assuring good dynamic response. In addition, wide output voltage swing and high output drive capability allow use in a wide variety of demanding applications. The dual version features completely independent circuitry for lowest crosstalk and freedom from interaction, even when overdriven or overloaded.

The INA2134 on-chip resistors are laser trimmed for accurate gain and optimum common-mode rejection. Furthermore, excellent TCR tracking of the resistors maintains gain accuracy and common-mode rejection over temperature. Operation is guaranteed from ±4V to ±18V (8V to 36V total supply).

The INA2134 is available in 8-pin DIP and SO-8 surface-mount packages. The INA2134 comes in 14-pin DIP and SO-14 surface-mount packages. Both are specified for operation over the extended industrial temperature range, 40 to +85.
